Locking Screw
專用內六角螺釘 |
 |
|
型號 |
對應刀具 |

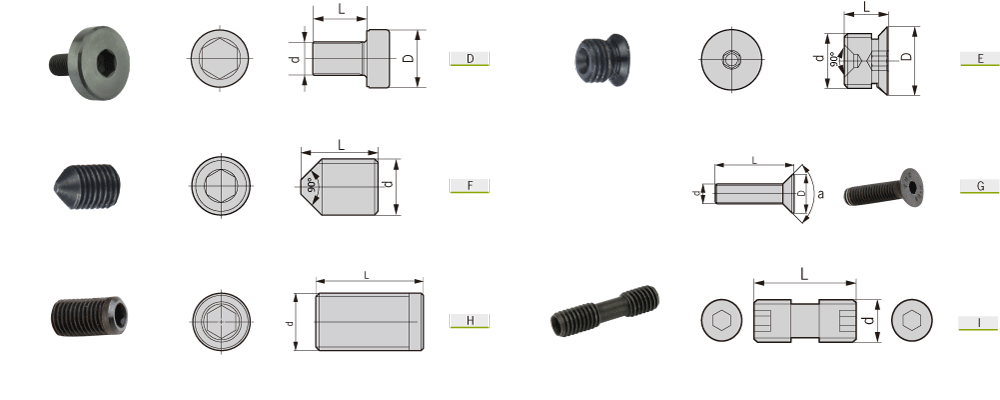

圖示 |
|
|
|
|
扳手 |
|
Specification |
For |
Figure |
d |
L |
α |
D |
Wrench |
|
E100Z300 |
DSF |
D |
10 |
30 |
- |
14 |
L08 |
|
E100Z300-MTB |
MTB |
D |
10 |
30 |
- |
13.5 |
L05 |
|
E160Z400-MTB |
MTB |
D |
16 |
40 |
- |
20 |
L08 |
|
E160Z350-40 |
FMA/B |
D |
16 |
35 |
- |
40 |
L17 |
|
E200Z350-50 |
FMA/B |
D |
20 |
35 |
- |
50 |
L17 |
|
E240Z350-65 |
FMA |
D |
24 |
35 |
- |
65 |
L17 |
|
E040Z160-D |
DBH |
D |
4 |
16 |
- |
6.4 |
L03 |
|
M060Z085P-W |
ABS25 |
E |
6 |
8.5 |
- |
- |
L03 |
|
M080Z110P-W |
ABS32 |
E |
8 |
11 |
- |
- |
L04 |
|
M100Z140P-W |
ABS40 |
E |
10 |
14 |
- |
- |
L05 |
|
M120Z165P-W |
ABS50 |
E |
12 |
16.5 |
- |
- |
L06 |
|
M160Z205P-W |
ABS63 |
E |
16 |
20.5 |
- |
- |
L08 |
|
M200Z260P-W |
ABS80 |
E |
20 |
26 |
- |
- |
L10 |
|
M060Z050P-N |
ABS25 |
F |
6 |
5 |
- |
8 |
L02 |
|
M080Z065P-N |
ABS32 |
F |
8 |
6.5 |
- |
10 |
L025 |
|
M100Z080P-N |
ABS40 |
F |
10 |
8 |
- |
12.5 |
L03 |
|
M120Z085P-N |
ABS50 |
F |
12 |
8.5 |
- |
15 |
L04 |
|
M160Z120P-N |
ABS63 |
F |
16 |
12 |
- |
20 |
L05 |
|
M200Z138P-N |
ABS80 |
F |
20 |
13.8 |
- |
24.5 |
L06 |
|
M050D160-90 |
MKT |
G |
5 |
16 |
90 |
9.8 |
L03 |
|
M050D200-90 |
MAC |
G |
5 |
20 |
90 |
9.8 |
L03 |
|
M050Z150-D |
DHP |
H |
5 |
15 |
- |
- |
L025 |
|
M060Z150-D |
DHP |
H |
6 |
15 |
- |
- |
L03 |
|
M080Z150P-D |
DHP/SF |
H |
8 |
15 |
- |
- |
L04 |
|
M160Z150P-D |
DHP/SF |
H |
16 |
15 |
- |
- |
L05 |
|
ML0621 |
FM45,FM90 |
I |
6 |
21 |
- |
- |
L03 | |
|
