| DG通用加工立銑刀 |
當前位置：首頁 > DG通用加工立銑刀 |

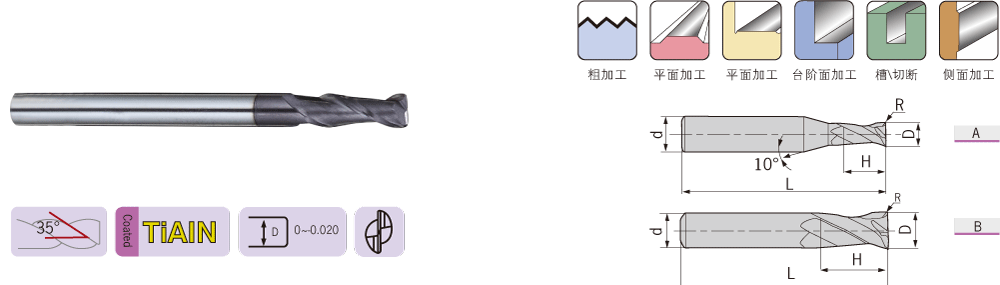

DG-2-R / Corner Radius / Standard / 2 Flutes
DG-2-R 兩刃直柄圓弧立銑刀 |
 |
| 型號 |
刃數(shù) |
圖示 |
|
|
|
|
|
|
Specifcation |
Flute |
Figure |
D |
R |
d |
H |
L |
|
DG- |
D1.0R0.2-50-2T-R |
2 |
A |
1.0 |
0.2 |
4 |
3 |
50 |
| D1.5R0.2-50-2T-R |
2 |
A |
1.5 |
0.2 |
4 |
4 |
50 |
| D2.0R0.2-50-2T-R |
2 |
A |
2.0 |
0.2 |
4 |
6 |
50 |
| D2.0R0.5-50-2T-R |
2 |
A |
2.0 |
0.5 |
4 |
6 |
50 |
| D2.5R0.2-50-2T-R |
2 |
A |
2.5 |
0.2 |
4 |
8 |
50 |
| D2.5R0.5-50-2T-R |
2 |
A |
2.5 |
0.5 |
4 |
8 |
50 |
| D3.0R0.2-50-2T-R |
2 |
A |
3.0 |
0.2 |
4 |
8 |
50 |
| D3.0R0.3-50-2T-R |
2 |
A |
3.0 |
0.3 |
4 |
8 |
50 |
| D3.0R0.5-50-2T-R |
2 |
A |
3.0 |
0.5 |
4 |
8 |
50 |
| D4.0R0.2-50-2T-R |
2 |
B |
4.0 |
0.2 |
4 |
11 |
50 |
| D4.0R0.3-50-2T-R |
2 |
B |
4.0 |
0.3 |
4 |
11 |
50 |
| D4.0R0.5-50-2T-R |
2 |
B |
4.0 |
0.5 |
4 |
11 |
50 |
| D4.0R1.0-50-2T-R |
2 |
B |
4.0 |
1.0 |
4 |
11 |
50 |
| D5.0R0.3-50-2T-R |
2 |
A |
5.0 |
0.3 |
6 |
13 |
50 |
| D5.0R0.5-50-2T-R |
2 |
A |
5.0 |
0.5 |
6 |
13 |
50 |
| D5.0R1.0-50-2T-R |
2 |
A |
5.0 |
1.0 |
6 |
13 |
50 |
| D6.0R0.3-50-2T-R |
2 |
B |
6.0 |
0.3 |
6 |
16 |
50 |
| D6.0R0.5-50-2T-R |
2 |
B |
6.0 |
0.5 |
6 |
16 |
50 |
| D6.0R1.0-50-2T-R |
2 |
B |
6.0 |
1.0 |
6 |
16 |
50 |
| D8.0R0.3-60-2T-R |
2 |
B |
8.0 |
0.3 |
8 |
20 |
60 |
| D8.0R0.5-60-2T-R |
2 |
B |
8.0 |
0.5 |
8 |
20 |
60 |
| D8.0R1.0-60-2T-R |
2 |
B |
8.0 |
1.0 |
8 |
20 |
60 |
| D10.0R0.5-75-2T-R |
2 |
B |
10.0 |
0.5 |
10 |
25 |
75 |
| D10.0R1.0-75-2T-R |
2 |
B |
10.0 |
1.0 |
10 |
25 |
75 |
| D10.0R1.5-75-2T-R |
2 |
B |
10.0 |
1.5 |
10 |
25 |
75 |
| D10.0R2.0-75-2T-R |
2 |
B |
10.0 |
2.0 |
10 |
25 |
75 |
| D12.0R0.5-75-2T-R |
2 |
B |
12.0 |
0.5 |
12 |
30 |
75 |
| D12.0R1.0-75-2T-R |
2 |
B |
12.0 |
1.0 |
12 |
30 |
75 |
| D12.0R1.5-75-2T-R |
2 |
B |
12.0 |
1.5 |
12 |
30 |
75 |
| D12.0R2.0-75-2T-R |
2 |
B |
12.0 |
2.0 |
12 |
30 |
75 |
| |
| 特點/ Feature |
■適用范圍廣泛，可實現(xiàn)多種形態(tài)的加工。 ■ For general purpose.
|
| ■被加工材料使用表 ◎ 非常適合 ○ 適合 ■Work Piece Table ◎ Excellent ○ Good |
| 被加工材料 Work Piece |
|
碳素鋼
Carbon
steel |
合金鋼
Alloy steel |
|
預硬鋼、淬硬鋼
Pre-hardened steel、Hardened steel |
| ~40HRC ~50HRC ~55HRC ~68HRC | |
不銹鋼
Stainless
steel |
鑄鐵、球墨鑄鐵
Cast iron,
Nodular
cast iron |
銅合金
Copper
alloy |
鋁合金
Aluminium
alloy |
鈦合金
Titanium
alloy |
耐熱合金
Heat
resistant
alloy |
| ◎ |
◎ |
◎ |
○ |
|
|
○ |
◎ |
|
|
|
|
|
|
