DG-4-BL / Ball / Long / 4 Flutes

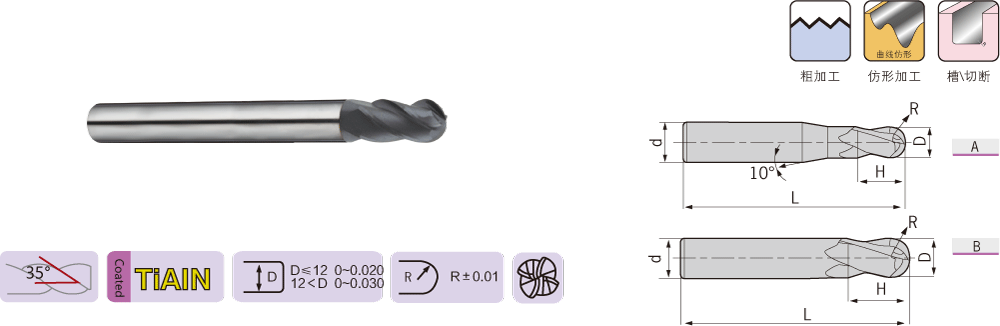

DG-4-BL 四刃直柄長柄球頭立銑刀 |
 |
| 型號 |
刃數(shù) |
圖示 |
|
|
|
|
|
|
Specifcation |
Flute |
Figure |
D |
R |
d |
H |
L |
|
DG- |
R1.5-75-4T-BL |
4 |
A |
3.0 |
1.5 |
6 |
6 |
75 |
| R2.0-75-4T-BL |
4 |
A |
4.0 |
2.0 |
6 |
8 |
75 |
| R2.5-75-4T-BL |
4 |
A |
5.0 |
2.5 |
6 |
10 |
75 |
| R3.0-75-4T-BL |
4 |
B |
6.0 |
3.0 |
6 |
12 |
75 |
| R4.0-100-4T-BL |
4 |
B |
8.0 |
4.0 |
8 |
16 |
100 |
| R5.0-100-4T-BL |
4 |
B |
10.0 |
5.0 |
10 |
20 |
100 |
| R6.0-100-4T-BL |
4 |
B |
12.0 |
6.0 |
12 |
24 |
100 |
| R7.0-100-4T-BL |
4 |
B |
14.0 |
7.0 |
14 |
28 |
100 |
| R8.0-150-4T-BL |
4 |
B |
16.0 |
8.0 |
16 |
32 |
150 |
| R9.0-150-4T-BL |
4 |
B |
18.0 |
9.0 |
18 |
36 |
150 |
| R10.0-150-4T-BL |
4 |
B |
20.0 |
10.0 |
20 |
40 |
150 |
| ■被加工材料使用表 ◎ 非常適合 ○ 適合 ■Work Piece Table ◎ Excellent ○ Good |
| 被加工材料 Work Piece |
|
碳素鋼
Carbon
steel |
合金鋼
Alloy steel |
|
預(yù)硬鋼、淬硬鋼
Pre-hardened steel、Hardened steel |
| ~40HRC ~50HRC ~55HRC ~68HRC | |
不銹鋼
Stainless
steel |
鑄鐵、球墨鑄鐵
Cast iron,
Nodular
cast iron |
銅合金
Copper
alloy |
鋁合金
Aluminium
alloy |
鈦合金
Titanium
alloy |
耐熱合金
Heat
resistant
alloy |
| ◎ |
◎ |
◎ |
○ |
|
|
○ |
◎ |
|
|
|
|
|
|
