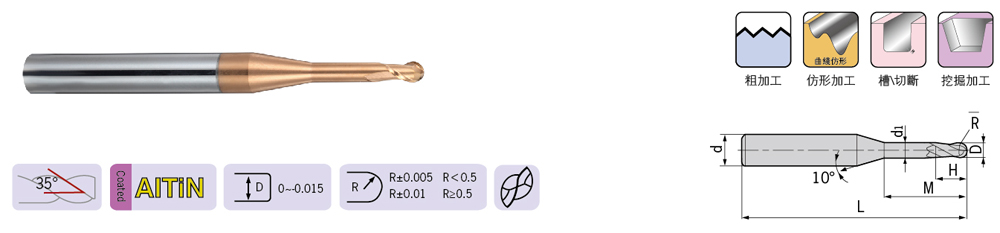

DH-2-BP / Ball / Long Neck / Short Flute / 2 Flutes
DH-2-BP兩刃直柄長頸短刃球頭立銑刀 |
 |
| 型號 |
刃數 |
|
|
|
|
|
|
|
|
Specifcation |
Flute |
D |
R |
H |
d1 |
M |
d |
L |
|
DH- |
R0.25-M04-50-2T-BP |
2 |
0.5 |
0.25 |
0.7 |
0.45 |
4 |
4 |
50 |
| R0.25-M06-50-2T-BP |
2 |
0.5 |
0.25 |
0.7 |
0.45 |
6 |
4 |
50 |
| R0.3-M04-50-2T-BP |
2 |
0.6 |
0.3 |
0.9 |
0.55 |
4 |
4 |
50 |
| R0.3-M06-50-2T-BP |
2 |
0.6 |
0.3 |
0.9 |
0.55 |
6 |
4 |
50 |
| R0.3-M08-50-2T-BP |
2 |
0.6 |
0.3 |
0.9 |
0.55 |
8 |
4 |
50 |
| R0.4-M04-50-2T-BP |
2 |
0.8 |
0.4 |
1.2 |
0.75 |
4 |
4 |
50 |
| R0.4-M06-50-2T-BP |
2 |
0.8 |
0.4 |
1.2 |
0.75 |
6 |
4 |
50 |
| R0.4-M08-50-2T-BP |
2 |
0.8 |
0.4 |
1.2 |
0.75 |
8 |
4 |
50 |
| R0.4-M10-50-2T-BP |
2 |
0.8 |
0.4 |
1.2 |
0.75 |
10 |
4 |
50 |
| R0.5-M04-50-2T-BP |
2 |
1.0 |
0.5 |
1.5 |
0.95 |
4 |
4 |
50 |
| R0.5-M06-50-2T-BP |
2 |
1.0 |
0.5 |
1.5 |
0.95 |
6 |
4 |
50 |
| R0.5-M08-50-2T-BP |
2 |
1.0 |
0.5 |
1.5 |
0.95 |
8 |
4 |
50 |
| R0.5-M10-50-2T-BP |
2 |
1.0 |
0.5 |
1.5 |
0.95 |
10 |
4 |
50 |
| R0.5-M12-50-2T-BP |
2 |
1.0 |
0.5 |
1.5 |
0.95 |
12 |
4 |
50 |
| R0.6-M06-50-2T-BP |
2 |
1.2 |
0.6 |
1.8 |
1.15 |
6 |
4 |
50 |
| R0.6-M08-50-2T-BP |
2 |
1.2 |
0.6 |
1.8 |
1.15 |
8 |
4 |
50 |
| R0.6-M12-50-2T-BP |
2 |
1.2 |
0.6 |
1.8 |
1.15 |
12 |
4 |
50 |
| R0.6-M16-50-2T-BP |
2 |
1.2 |
0.6 |
1.8 |
1.15 |
16 |
4 |
50 |
| R0.75-M08-50-2T-BP |
2 |
1.5 |
0.75 |
2.3 |
1.45 |
8 |
4 |
50 |
| R0.75-M12-50-2T-BP |
2 |
1.5 |
0.75 |
2.3 |
1.45 |
12 |
4 |
50 |
| R0.75-M16-50-2T-BP |
2 |
1.5 |
0.75 |
2.3 |
1.45 |
16 |
4 |
50 |
| R1.0-M06-50-2T-BP |
2 |
2.0 |
1.0 |
3.0 |
1.95 |
6 |
4 |
50 |
| R1.0-M08-50-2T-BP |
2 |
2.0 |
1.0 |
3.0 |
1.95 |
8 |
4 |
50 |
| R1.0-M10-50-2T-BP |
2 |
2.0 |
1.0 |
3.0 |
1.95 |
10 |
4 |
50 |
| R1.0-M12-50-2T-BP |
2 |
2.0 |
1.0 |
3.0 |
1.95 |
12 |
4 |
50 |
| R1.0-M16-50-2T-BP |
2 |
2.0 |
1.0 |
3.0 |
1.95 |
16 |
4 |
50 |
| R1.0-M20-50-2T-BP |
2 |
2.0 |
1.0 |
3.0 |
1.95 |
20 |
4 |
50 |
| R1.25-M08-50-2T-BP |
2 |
2.5 |
1.25 |
3.7 |
2.4 |
8 |
4 |
50 |
| R1.25-M12-50-2T-BP |
2 |
2.5 |
1.25 |
3.7 |
2.4 |
12 |
4 |
50 |
| R1.25-M16-60-2T-BP |
2 |
2.5 |
1.25 |
3.7 |
2.4 |
16 |
4 |
60 |
| R1.25-M20-60-2T-BP |
2 |
2.5 |
1.25 |
3.7 |
2.4 |
20 |
4 |
60 |
| R1.5-M08-50-2T-BP |
2 |
3.0 |
1.5 |
4.5 |
2.85 |
8 |
6 |
50 |
| R1.5-M10-50-2T-BP |
2 |
3.0 |
1.5 |
4.5 |
2.85 |
10 |
6 |
50 |
| R1.5-M12-50-2T-BP |
2 |
3.0 |
1.5 |
4.5 |
2.85 |
12 |
6 |
50 |
| R1.5-M16-60-2T-BP |
2 |
3.0 |
1.5 |
4.5 |
2.85 |
16 |
6 |
60 |
| R1.5-M20-60-2T-BP |
2 |
3.0 |
1.5 |
4.5 |
2.85 |
20 |
6 |
60 |
| R2.0-M10-60-2T-BP |
2 |
4.0 |
2.0 |
6.0 |
3.85 |
10 |
6 |
60 |
| R2.0-M16-60-2T-BP |
2 |
4.0 |
2.0 |
6.0 |
3.85 |
16 |
6 |
60 |
| R2.0-M20-60-2T-BP |
2 |
4.0 |
2.0 |
6.0 |
3.85 |
20 |
6 |
60 |
| R2.0-M25-60-2T-BP |
2 |
4.0 |
2.0 |
6.0 |
3.85 |
25 |
6 |
60 |
| R2.5-M16-60-2T-BP |
2 |
5.0 |
2.5 |
7.5 |
4.85 |
16 |
6 |
60 |
| R2.5-M25-70-2T-BP |
2 |
5.0 |
2.5 |
7.5 |
4.85 |
20 |
6 |
70 |
| |
| 特點/ Feature |
■適用于細槽加工以及自由曲面加工。 ■Suitable for rib-processing and profling.
|
| ■被加工材料使用表 ◎ 非常適合 ○ 適合 ■Work Piece Table ◎ Excellent ○ Good |
| 被加工材料 Work Piece |
|
碳素鋼
Carbon
steel |
合金鋼
Alloy steel |
|
預硬鋼、淬硬鋼
Pre-hardened steel、Hardened steel |
| ~40HRC ~50HRC ~55HRC ~68HRC | |
不銹鋼
Stainless
steel |
鑄鐵、球墨鑄鐵
Cast iron,
Nodular
cast iron |
銅合金
Copper
alloy |
鋁合金
Aluminium
alloy |
鈦合金
Titanium
alloy |
耐熱合金
Heat
resistant
alloy |
| |
|
○ |
◎ |
|
◎ |
○ |
|
|
|
|
|
|
|
