| DH高硬度鋼加工立銑刀 |
當前位置：首頁 > DH高硬度鋼加工立銑刀 |

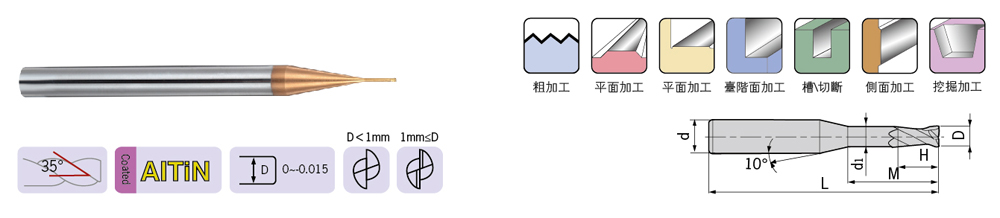

DH-2-EP / Square / Long Neck / Short Flute / 2 Flutes
DH-2-EP兩刃直柄長頸短刃平頭立銑刀 |
 |
| 型號 |
刃數 |
|
|
|
|
|
|
|
Specifcation |
Flute |
D |
d |
H |
M |
d1 |
L |
|
DH- |
D0.5-M04-50-2T-EP |
2 |
0.5 |
4 |
0.7 |
4 |
0.45 |
50 |
| D0.5-M06-50-2T-EP |
2 |
0.5 |
4 |
0.7 |
6 |
0.45 |
50 |
| D0.5-M08-50-2T-EP |
2 |
0.5 |
4 |
0.7 |
8 |
0.45 |
50 |
| D0.8-M04-50-2T-EP |
2 |
0.8 |
4 |
1.2 |
4 |
0.75 |
50 |
| D0.8-M06-50-2T-EP |
2 |
0.8 |
4 |
1.2 |
6 |
0.75 |
50 |
| D0.8-M08-50-2T-EP |
2 |
0.8 |
4 |
1.2 |
8 |
0.75 |
50 |
| D0.8-M10-50-2T-EP |
2 |
0.8 |
4 |
1.2 |
4 |
0.75 |
50 |
| D1.0-M04-50-2T-EP |
2 |
1.0 |
4 |
1.5 |
6 |
0.95 |
50 |
| D1.0-M06-50-2T-EP |
2 |
1.0 |
4 |
1.5 |
8 |
0.95 |
50 |
| D1.0-M08-50-2T-EP |
2 |
1.0 |
4 |
1.5 |
10 |
0.95 |
50 |
| D1.0-M10-50-2T-EP |
2 |
1.0 |
4 |
1.5 |
12 |
0.95 |
50 |
| D1.0-M12-50-2T-EP |
2 |
1.0 |
4 |
1.5 |
14 |
0.95 |
50 |
| D1.0-M14-50-2T-EP |
2 |
1.0 |
4 |
1.5 |
6 |
0.95 |
50 |
| D1.2-M06-50-2T-EP |
2 |
1.2 |
4 |
1.8 |
8 |
1.15 |
50 |
| D1.2-M08-50-2T-EP |
2 |
1.2 |
4 |
1.8 |
10 |
1.15 |
50 |
| D1.2-M10-50-2T-EP |
2 |
1.2 |
4 |
1.8 |
12 |
1.15 |
50 |
| D1.2-M12-50-2T-EP |
2 |
1.2 |
4 |
1.8 |
14 |
1.15 |
50 |
| D1.5-M06-50-2T-EP |
2 |
1.5 |
4 |
2.3 |
6 |
1.45 |
50 |
| D1.5-M08-50-2T-EP |
2 |
1.5 |
4 |
2.3 |
8 |
1.45 |
50 |
| D1.5-M10-50-2T-EP |
2 |
1.5 |
4 |
2.3 |
10 |
1.45 |
50 |
| D1.5-M12-50-2T-EP |
2 |
1.5 |
4 |
2.3 |
12 |
1.45 |
50 |
| D1.5-M14-50-2T-EP |
2 |
1.5 |
4 |
2.3 |
14 |
1.45 |
50 |
| D2.0-M06-50-2T-EP |
2 |
2.0 |
4 |
3.0 |
6 |
1.95 |
50 |
| D2.0-M08-50-2T-EP |
2 |
2.0 |
4 |
3.0 |
8 |
1.95 |
50 |
| D2.0-M10-50-2T-EP |
2 |
2.0 |
4 |
3.0 |
10 |
1.95 |
50 |
| D2.0-M12-50-2T-EP |
2 |
2.0 |
4 |
3.0 |
12 |
1.95 |
50 |
| D2.0-M14-50-2T-EP |
2 |
2.0 |
4 |
3.0 |
14 |
1.95 |
50 |
| D2.0-M16-50-2T-EP |
2 |
2.0 |
4 |
3.0 |
16 |
1.95 |
50 |
| D2.5-M08-50-2T-EP |
2 |
2.5 |
4 |
3.7 |
8 |
2.4 |
50 |
| D2.5-M10-50-2T-EP |
2 |
2.5 |
4 |
3.7 |
10 |
2.4 |
50 |
| D2.5-M12-50-2T-EP |
2 |
2.5 |
4 |
3.7 |
12 |
2.4 |
50 |
| D2.5-M14-50-2T-EP |
2 |
2.5 |
4 |
3.7 |
14 |
2.4 |
50 |
| D2.5-M16-60-2T-EP |
2 |
2.5 |
4 |
3.7 |
16 |
2.4 |
50 |
| D2.5-M18-60-2T-EP |
2 |
2.5 |
4 |
3.7 |
18 |
2.4 |
50 |
| D2.5-M20-60-2T-EP |
2 |
2.5 |
4 |
3.7 |
20 |
2.4 |
50 |
| D3.0-M06-50-2T-EP |
2 |
3.0 |
6 |
4.5 |
6 |
2.85 |
50 |
| D3.0-M08-50-2T-EP |
2 |
3.0 |
6 |
4.5 |
8 |
2.85 |
50 |
| D3.0-M10-50-2T-EP |
2 |
3.0 |
6 |
4.5 |
10 |
2.85 |
50 |
| D3.0-M12-50-2T-EP |
2 |
3.0 |
6 |
4.5 |
12 |
2.85 |
50 |
| D3.0-M14-60-2T-EP |
2 |
3.0 |
6 |
4.5 |
14 |
2.85 |
60 |
| D3.0-M16-60-2T-EP |
2 |
3.0 |
6 |
4.5 |
16 |
2.85 |
60 |
| D3.0-M18-60-2T-EP |
2 |
3.0 |
6 |
4.5 |
18 |
2.85 |
60 |
| D3.0-M20-60-2T-EP |
2 |
3.0 |
6 |
4.5 |
20 |
2.85 |
60 |
| D4.0-M12-50-2T-EP |
2 |
4.0 |
6 |
6.0 |
12 |
3.85 |
60 |
| D4.0-M16-60-2T-EP |
2 |
4.0 |
6 |
6.0 |
16 |
3.85 |
60 |
| D4.0-M20-60-2T-EP |
2 |
4.0 |
6 |
6.0 |
20 |
3.85 |
60 |
| D4.0-M25-60-2T-EP |
2 |
4.0 |
6 |
6.0 |
25 |
3.85 |
60 |
| D5.0-M16-60-2T-EP |
2 |
5.0 |
6 |
7.5 |
16 |
4.85 |
60 |
| D5.0-M25-70-2T-EP |
2 |
5.0 |
6 |
7.5 |
25 |
4.85 |
70 |
| |
| 特點/ Feature |
| ■適用于細槽加工或會產生干涉的細微部分的加工。 |
| ■Suitable for rib-processing and very fne operations without interference. |
| ■被加工材料使用表 ◎ 非常適合 ○ 適合 ■Work Piece Table ◎ Excellent ○ Good |
| 被加工材料 Work Piece |
|
碳素鋼
Carbon
steel |
合金鋼
Alloy steel |
|
預硬鋼、淬硬鋼
Pre-hardened steel、Hardened steel |
| ~40HRC ~50HRC ~55HRC ~68HRC | |
不銹鋼
Stainless
steel |
鑄鐵、球墨鑄鐵
Cast iron,
Nodular
cast iron |
銅合金
Copper
alloy |
鋁合金
Aluminium
alloy |
鈦合金
Titanium
alloy |
耐熱合金
Heat
resistant
alloy |
| |
|
○ |
◎ |
|
◎ |
○ |
|
|
|
|
|
|
|
