型 號 |
最小加工徑 |
|
|
|
|
|
|
刀片 |
螺絲 |
扳手 |
出水孔 |
|

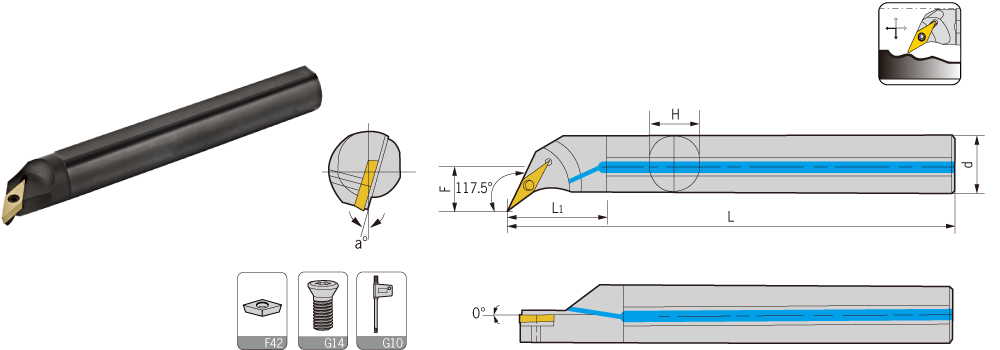

Specification |
Min dia |
d |
F |
L1 |
L |
H |
a |
Insert |
Screw |
Wrench |
Water hole |
|
S12M-SVQBR/L11 |
17 |
12 |
10.5 |
27 |
150 |
11 |
10° |
VB..1103.. |
M2.5*7 |
Q08 |
- |
|
S16N-SVQBR/L11 |
22 |
16 |
11.5 |
27 |
160 |
15 |
10° |
VB..1103.. |
M2.5*7 |
Q08 |
- |
|
S20Q-SVQBR/L11 |
27 |
20 |
14 |
34 |
180
|
18 |
8° |
VB..1103.. |
M2.5*7 |
Q08 |
- |
|
S16N-SVQCR/L11 |
22 |
16 |
11.5 |
27 |
160 |
15 |
8° |
VC..1103.. |
M2.5*7 |
Q08 |
- |
|
S20Q-SVQCR/L11 |
27 |
20 |
14 |
34 |
180
|
18 |
6° |
VC..1103.. |
M2.5*7 |
Q08 |
- |
|
S20Q-SVQBR/L16 |
27 |
20 |
14 |
34 |
180 |
18 |
10° |
VB..1604.. |
M3.5*9 |
Q15 |
- |
|
S25R-SVQBR/L16 |
32 |
25 |
16.5 |
43 |
200
|
23 |
8° |
VB..1604.. |
M3.5*9 |
Q15 |
- |
|
S32S-SVQBR/L16 |
41 |
32 |
22.5 |
54 |
250 |
30 |
10° |
VB..1604.. |
M3.5*9 |
Q15 |
- |
|
S40T-SVQBR/L16 |
50 |
40 |
27 |
68 |
300
|
37 |
8° |
VB..1604.. |
M3.5*9 |
Q15 |
- |
|
S20Q-SVQCR/L16 |
27 |
20 |
14 |
34 |
180 |
18 |
8° |
VC..1604.. |
M3.5*9 |
Q15 |
- |
|
S25R-SVQCR/L16 |
32 |
25 |
16.5 |
43 |
200
|
23 |
6° |
VC..1604.. |
M3.5*9 |
Q15 |
- |
|
S32S-SVQCR/L16 |
41 |
32 |
22.5 |
54 |
250 |
30 |
8° |
VC..1604.. |
M3.5*9 |
Q15 |
- |
|
S40T-SVQCR/L16 |
50 |
40 |
27 |
68 |
300
|
37 |
6° |
VC..1604.. |
M3.5*9 |
Q15 |
- |
|
A12M-SVQBR/L11 |
17 |
12 |
10 |
27 |
150 |
11 |
10° |
VB..1103.. |
M2.5*7 |
Q08 |
√ |
|
A16N-SVQBR/L11 |
22 |
16 |
11.5 |
27 |
160
|
15 |
10° |
VB..1103.. |
M2.5*7 |
Q08 |
√ |
|
A20Q-SVQBR/L11 |
27 |
20 |
14 |
34 |
180 |
18 |
8° |
VB..1103.. |
M2.5*7 |
Q08 |
√ |
|
A16N-SVQCR/L11 |
22 |
16 |
11.5 |
27 |
160
|
15 |
8° |
VC..1103.. |
M2.5*7 |
Q08 |
√ |
|
A20Q-SVQCR/L11 |
27 |
20 |
14 |
34 |
180 |
18 |
6° |
VC..1103.. |
M2.5*7 |
Q08 |
√ |
|
A25R-SVQBR/L16 |
32 |
25 |
16.5 |
43 |
200
|
23 |
8° |
VB..1604.. |
M3.5*9 |
Q15 |
√ |
|
A20Q-SVQCR/L16 |
27 |
20 |
14 |
34 |
180 |
18 |
8° |
VC..1604.. |
M3.5*9 |
Q15 |
√ |
|
A25R-SVQCR/L16 |
32 |
25 |
16.5 |
43 |
200
|
23 |
6° |
VC..1604.. |
M3.5*9 |
Q15 |
√ |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
