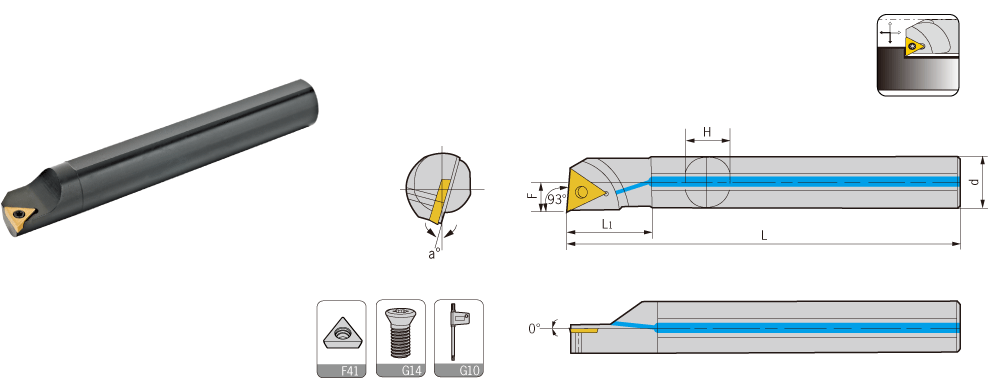

內(nèi)孔車刀 |
當(dāng)前位置:首頁 > 內(nèi)孔車刀 |
|
型 號(hào) |
最小加工徑 |
|
|
|
|
|
|
刀片 |
螺絲 |
扳手 |
出水孔 |
Specification |
Min dia |
d |
F |
L1 |
L |
H |
a |
Insert |
Screw |
Wrench |
Water hole |
S08K-STUPR/L09 |
11 |
8 |
5 |
15 |
125 |
7 |
10° |
TC..0902.. |
M2.5*5 |
Q08 |
- |
S10K-STUPR/L09 |
13 |
10 |
6 |
17 |
125 |
9 |
8° |
TC..0902.. |
M2.5*6 |
Q08 |
- |
S10K-STUPR/L11 |
13 |
10 |
6 |
17 |
125
|
9 |
12° |
TP..1103.. |
M3*6 |
Q08 |
- |
S12M-STUPR/L11 |
16 |
12 |
7 |
20 |
150 |
11 |
10° |
TP..1103.. |
M3*6 |
Q08 |
- |
S16N-STUPR/L11 |
20 |
16 |
9 |
27 |
160
|
15 |
8° |
TP..1103.. |
M3*7 |
Q08 |
- |
S20Q-STUPR/L11 |
24 |
20 |
11 |
34 |
180 |
18 |
6° |
TP..1103.. |
M3*7 |
Q08 |
- |
S20Q-STUPR/L16 |
24 |
20 |
11.5 |
34 |
180
|
18 |
6° |
TP..1603.. |
M3.5*9 |
Q15 |
- |
S25R-STUPR/L16 |
31 |
25 |
14.5 |
43 |
200 |
24 |
4° |
TP..1603.. |
M3.5*9 |
Q15 |
- |
A08K-STUPR/L09 |
11 |
8 |
5 |
15 |
125
|
7 |
10° |
TP..0902.. |
M2.5*5 |
Q08 |
√ |
A10K-STUPR/L11 |
13 |
10 |
6 |
17 |
125 |
9 |
12° |
TP..1103.. |
M3*6 |
Q08 |
√ |
A12M-STUPR/L11 |
16 |
12 |
7 |
20 |
150
|
11 |
10° |
TP..1103.. |
M3*6 |
Q08 |
√ |
A16N-STUPR/L11 |
20 |
16 |
9 |
27 |
160 |
15 |
8° |
TP..1103.. |
M3*7 |
Q08 |
√ |
A20Q-STUPR/L16 |
24 |
20 |
11.5 |
34 |
180
|
18 |
6° |
TP..1603.. |
M3.5*9 |
Q15 |
√ |
A25R-STUPR/L16 |
31 |
25 |
14.5 |
43 |
200 |
23 |
4° |
TP..1603.. |
M3.5*9 |
Q15 |
√ |
適用 Suitable:德克刀片 DEREK Insert |
|
|
