型 號 |
最小加工徑 |
|
|
|
|
|
|
刀片 |
螺絲 |
扳手 |
出水孔 |
|

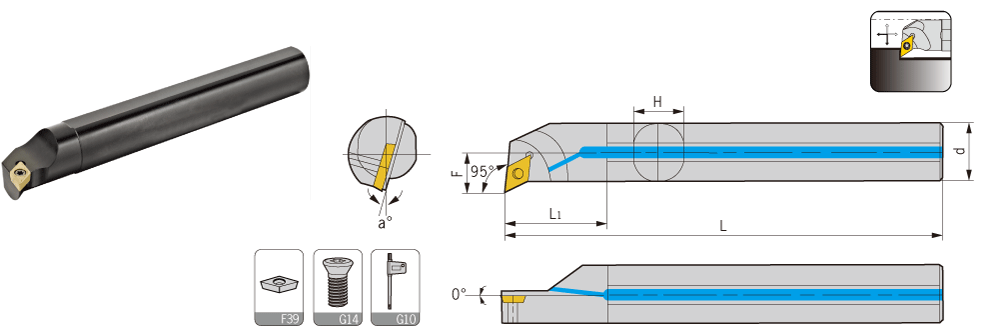

Specification |
Min dia |
d |
F |
L |
L1 |
H |
a |
Insert |
Screw |
Wrench |
Water hole |
|
S10K-SDLCR/L07 |
15 |
10 |
8 |
125 |
17 |
9 |
10° |
DC..0702.. |
M2.5*6 |
Q08 |
- |
|
S12M-SDLCR/L07 |
17 |
12 |
9 |
150 |
20 |
11 |
8° |
DC..0702.. |
M2.5*6 |
Q08 |
- |
|
S16N-SDLCR/L07 |
22 |
16 |
11 |
160 |
27
|
15 |
6° |
DC..0702.. |
M2.5*7 |
Q08 |
- |
|
S20Q-SDLCR/L11 |
25 |
20 |
13 |
180 |
34 |
18 |
6° |
DC..11T3.. |
M3.5*9 |
Q15 |
- |
|
S25R-SDLCR/L11 |
32 |
25 |
16 |
200 |
43
|
23 |
4° |
DC..11T3.. |
M3.5*9 |
Q15 |
- |
|
S32S-SDLCR/L11 |
39 |
32 |
20 |
250 |
54 |
30 |
4° |
DC..11T3.. |
M3.5*9 |
Q15 |
- |
|
H10K-SDLCR/L07 |
15 |
10 |
8 |
125 |
20
|
9 |
10° |
DC..0702.. |
M2.5*6 |
Q08 |
- |
|
H12M-SDLCR/L07 |
17 |
12 |
9 |
150 |
24 |
11 |
8° |
DC..0702.. |
M2.5*6 |
Q08 |
- |
|
H16N-SDLCR/L07 |
22 |
16 |
11 |
160 |
32
|
15 |
6° |
DC..0702.. |
M2.5*7 |
Q08 |
- |
|
C10K-SDLCR/L07 |
15 |
10 |
8 |
125 |
17 |
9 |
10° |
DC..0702.. |
M2.5*6 |
Q08 |
- |
|
C12M-SDLCR/L07 |
17 |
12 |
9 |
150 |
20
|
11 |
8° |
DC..0702.. |
M2.5*6 |
Q08 |
- |
|
C16N-SDLCR/L07 |
22 |
16 |
11 |
160 |
27 |
15 |
6° |
DC..0702.. |
M2.5*7 |
Q08 |
- |
|
C20Q-SDLCR/L11 |
25 |
20 |
13 |
180 |
34
|
18 |
6° |
DC..11T3.. |
M3.5*9 |
Q15 |
- |
|
A10K-SDLCR/L07 |
15 |
10 |
8 |
125 |
17 |
9 |
10° |
DC..0702.. |
M2.5*6 |
Q08 |
√ |
|
A12M-SDLCR/L07 |
17 |
12 |
9 |
150 |
20
|
11 |
8° |
DC..0702.. |
M2.5*6 |
Q08 |
√ |
|
A16N-SDLCR/L07 |
22 |
16 |
11 |
160 |
24 |
15 |
6° |
DC..0702.. |
M2.5*7 |
Q08 |
√ |
|
A20Q-SDLCR/L11 |
25 |
20 |
13 |
180 |
34
|
18 |
6° |
DC..11T3.. |
M3.5*9 |
Q15 |
√ |
|
A25R-SDLCR/L11 |
32 |
25 |
16 |
200 |
43 |
23 |
4° |
DC..11T3.. |
M3.5*9 |
Q15 |
√ |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
