| 內(nèi)孔車刀 |
當(dāng)前位置：首頁 > 內(nèi)孔車刀 |
 |
|
型 號(hào) |
最小加工徑 |
|
|
|
|
|
|
刀片 |
刀墊 |
中心螺絲 |
壓板 |
壓板螺絲 |
扳手 |
出水孔 |
|

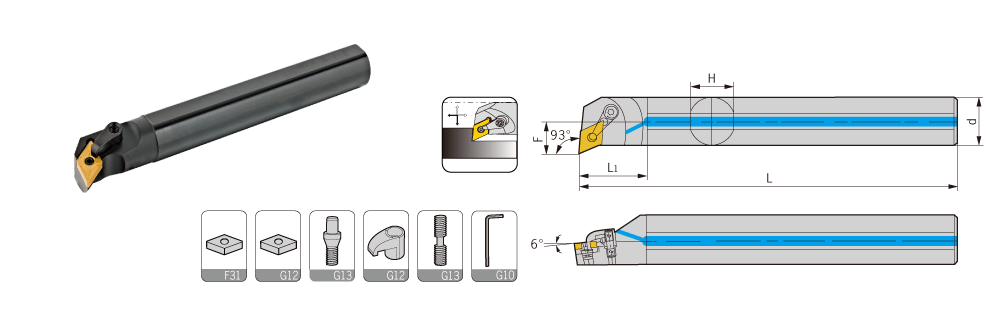

Specification |
Min dia |
d |
F |
L |
L1 |
H |
a |
Insert |
Shim |
Center screw |
Clamp |
Clamp screw |
Wrench |
Water hole |
|
S25R-MDUNR/L15 |
32 |
25 |
16 |
200 |
43 |
23 |
12° |
DN..1504.. |
- |
MX0613 |
MY0621 |
ML0620 |
L025,L03 |
- |
|
S32S-MDUNR/L15 |
40 |
32 |
21 |
250 |
54 |
30 |
17° |
DN..1504.. |
MD1504 |
MX0617 |
MY0621 |
ML0625 |
L025,L03 |
- |
|
S40T-MDUNR/L15 |
50 |
40 |
26 |
300 |
68
|
37 |
15° |
DN..1504.. |
MD1504 |
MX0617 |
MY0621 |
ML0625 |
L025,L03 |
- |
|
S50U-MDUNR/L15 |
60 |
50 |
32 |
350 |
85 |
47 |
12° |
DN..1504.. |
MD1504 |
MX0617 |
MY0621 |
ML0625 |
L025,L03 |
- |
|
H25R-MDUNR/L15 |
32 |
25 |
16 |
200 |
43
|
23 |
12° |
DN..1504.. |
- |
MX0613 |
MY0621 |
ML0620 |
L025,L03 |
- |
|
H32S-MDUNR/L15 |
40 |
32 |
21 |
250 |
54 |
30 |
17° |
DN..1504.. |
MD1504 |
MX0617 |
MY0621 |
ML0625 |
L025,L03 |
- |
|
A25R-MDUNR/L15 |
32 |
25 |
16 |
200 |
43
|
23 |
12° |
DN..1504.. |
- |
MX0613 |
MY0621 |
ML0620 |
L025,L03 |
√ |
|
A32S-MDUNR/L15 |
40 |
32 |
21 |
250 |
54 |
30 |
17° |
DN..1504.. |
MD1504 |
MX0617 |
MY0621 |
ML0625 |
L025,L03 |
√ |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
