| 內孔車刀 |
當前位置：首頁 > 內孔車刀 |
 |
|
型 號 |
最小加工徑 |
|
|
|
|
|
|
刀片 |
刀墊 |
中心螺絲 |
壓板 |
壓板螺絲 |
扳手 |
出水孔 |
|

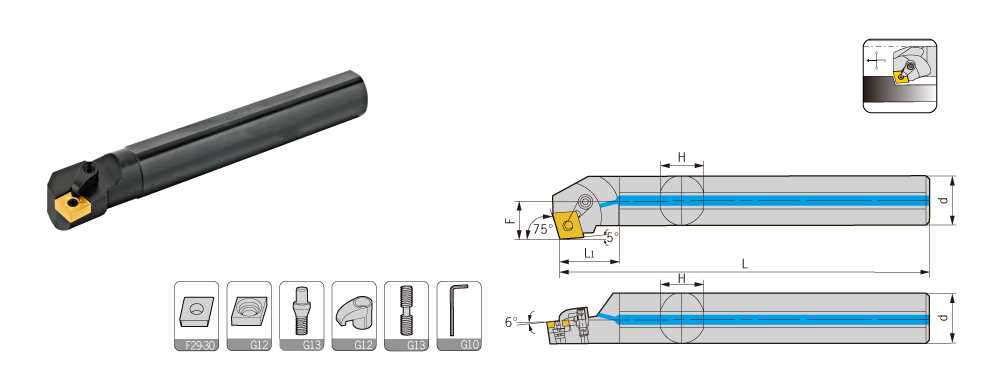

Specification |
Min dia |
d |
F |
L |
L1 |
H |
a |
Insert |
Shim |
Center screw |
Clamp |
Clamp screw |
Wrench |
Water hole |
|
S20Q-MCKNR/L12 |
26 |
20 |
14 |
180 |
34 |
18 |
15° |
CN..1204.. |
- |
MX0613 |
MY0515-A |
ML0520 |
L025 |
- |
|
S25R-MCKNR/L12 |
32 |
25 |
16.5 |
200 |
43 |
23 |
12° |
CN..1204.. |
- |
MX0613 |
MY0619 |
ML0620 |
L025,L03 |
- |
|
S32S-MCKNR/L12 |
40 |
32 |
22.5 |
250 |
54
|
30 |
17° |
CN..1204.. |
MC1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
- |
|
S40T-MCKNR/L12 |
50 |
40 |
26 |
300 |
68 |
37 |
15° |
CN..1204.. |
MC1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
- |
|
S50U-MCKNR/L12 |
60 |
50 |
33 |
350 |
85
|
47 |
12° |
CN..1204.. |
MC1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
- |
|
S60V-MCKNR/L12 |
70 |
60 |
36 |
400 |
102 |
56 |
10° |
CN..1204.. |
MC1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
- |
|
H20Q-MCKNR/L12 |
26 |
20 |
14 |
180 |
34
|
18 |
15° |
CN..1204.. |
- |
MX0613 |
MY0515-A |
ML0520 |
L025 |
- |
|
H25R-MCKNR/L12 |
32 |
25 |
16.5 |
200 |
43 |
23 |
12° |
CN..1204.. |
- |
MX0613 |
MY0619 |
ML0620 |
L025,L03 |
- |
|
A20Q-MCKNR/L12 |
26 |
20 |
14 |
180 |
34
|
18 |
15° |
CN..1204.. |
- |
MX0613 |
MY0515-A |
ML0520 |
L025 |
√ |
|
A25R-MCKNR/L12 |
32 |
25 |
16.5 |
200 |
43 |
23 |
12° |
CN..1204.. |
- |
MX0613 |
MY0619 |
ML0620 |
L025,L03 |
√ |
|
A32S-MCKNR/L12 |
40 |
32 |
22.5 |
250 |
54
|
30 |
17° |
CN..1204.. |
MC1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
√ |
|
A40T-MCKNR/L12 |
50 |
40 |
26 |
300 |
68 |
37 |
15° |
CN..1204.. |
MC1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
√ |
|
A50U-MCKNR/L19 |
60 |
50 |
32.5 |
350 |
85
|
47 |
12° |
CN..1906.. |
MC1904 |
MX1022 |
MY0823 |
ML0828 |
L04 |
√ |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
