| 外圓車刀 |
當(dāng)前位置：首頁 > 外圓車刀 |
 |
|
型 號 |
|
|
|
|
刀片 |
刀墊 |
中心螺絲 |
壓板 |
壓板螺絲 |
扳手 |
|

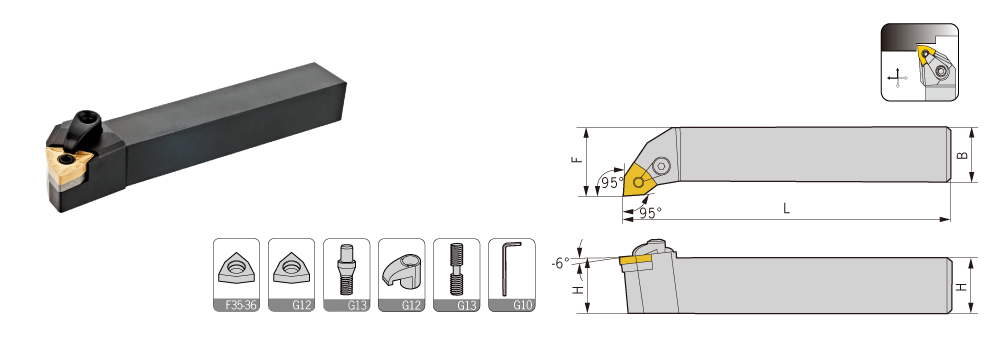

Specification |
H |
B |
L |
F |
Insert |
Shim |
Center screw |
Clamp |
Clamp screw |
Wrench |
| MWLNR/L- |
1616H06 |
16 |
16 |
100 |
20 |
WN..0604.. |
MW0603 |
MX0513 |
MY0619 |
ML0625 |
L02,L03 |
|
2020K06 |
20 |
20 |
125 |
25 |
WN..0604.. |
MW0603 |
MX0513 |
MY0619 |
ML0625 |
L02,L03 |
|
2525M06 |
25 |
25 |
150 |
32
|
WN..0604.. |
MW0603 |
MX0513 |
MY0619 |
ML0625 |
L02,L03 |
|
1616H08 |
16 |
16 |
100 |
20 |
WN..0804.. |
MW0804 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
|
2020K08 |
20 |
20 |
125 |
25
|
WN..0804.. |
MW0804 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
|
2525M08 |
25 |
25 |
150 |
32 |
WN..0804.. |
MW0804 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
|
3232P08 |
32 |
32 |
170 |
40
|
WN..0804.. |
MW0804 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
|
4040R08 |
40 |
40 |
200 |
50 |
WN..0804.. |
MW0804 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
