型 號 |
最小 |
最大 |
|
|
|
|
刀片 |
螺絲 |
扳手 |
|

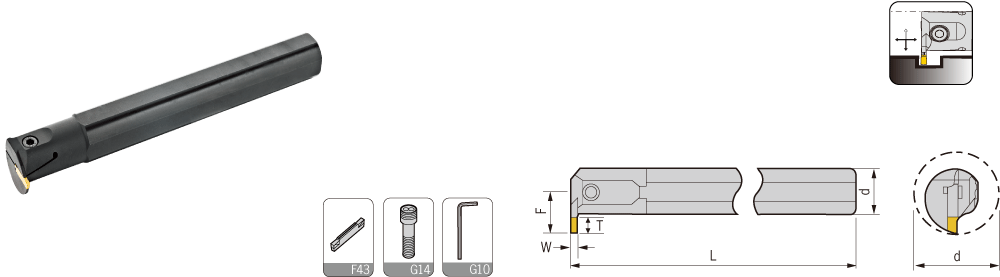

Specification |
加工徑 |
切深T |
d |
L |
F |
W |
Insert |
Screw |
Wrench |
|
C20Q-QEDR/L05-27 |
27 |
5 |
20 |
180 |
15.2
|
2.5 |
ZTED*****
ZRED***** |
GS050120 |
L04 |
|
C25R-QEDR/L07-33 |
33 |
7 |
25 |
200 |
20.3 |
2.5 |
GS050160 |
L04 |
|
C32S-QEDR/L09-42 |
42 |
9 |
32 |
250 |
25.3 |
2.5 |
GS050160 |
L04 |
|
C20Q-QFDR/L05-27 |
27 |
5 |
20 |
180 |
15.2 |
3 |
ZTFD*****
ZRFD***** |
GS050120 |
L04 |
|
C25R-QFDR/L07-33 |
33 |
7 |
25 |
200 |
20.3
|
3 |
GS050160 |
L04 |
|
C32S-QFDR/09-42 |
42 |
9 |
20 |
250 |
25.3 |
3 |
GS050160 |
L04 |
|
C25R-QGDR/L08-35 |
35 |
8 |
25 |
200 |
21.5
|
4 |
ZTGD*****
ZRGD***** |
GS050160 |
L04 |
|
C32S-QGDR/L11-44 |
44 |
11 |
32 |
250 |
27.5 |
4 |
GS050160 |
L04 |
|
C40T-QGDR/L13-54 |
54 |
13 |
40 |
300 |
33.5 |
4 |
GS050160 |
L04 |
|
C25R-QHDR/L08-35 |
35 |
8 |
25 |
200 |
21.5 |
5 |
ZTHD*****
ZRHD***** |
GS050160 |
L05 |
|
C32S-QHDR/L11-44 |
44 |
11 |
32 |
250 |
27.5
|
5 |
GS060200 |
L05 |
|
C40T-QHDR/L13-54 |
54 |
13 |
40 |
300 |
33.5 |
5 |
GS060200 |
L05 |
|
C25R-QKDR/L08-35 |
35 |
8 |
25 |
200 |
21.5 |
6 |
ZTKD*****
ZRKD***** |
GS050160 |
L05 |
|
C32S-QKDR/11-44 |
44 |
11 |
32 |
250 |
27.5 |
6 |
GS060200 |
L05 |
|
C40T-QKDR/L13-54 |
54 |
13 |
40 |
300 |
33.5
|
6 |
GS060200 |
L05 |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
