| 內孔車刀 |
當前位置：首頁 > 內孔車刀 |
 |
|
型 號 |
最小加工徑 |
|
|
|
|
|
|
刀片 |
螺絲 |
扳手 |
出水孔 |
|

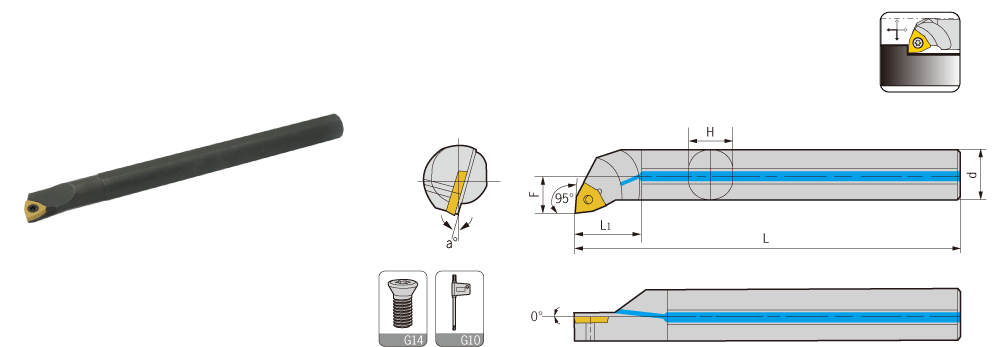

Specification |
Min dia |
d |
F |
L1 |
L |
H |
a |
Insert |
Screw |
Wrench |
Water hole |
|
S08K-SWLCR/L04 |
10 |
8 |
5 |
14 |
125 |
7 |
13° |
WC..0402.. |
M2.5*5 |
Q08 |
- |
|
S10K-SWLCR/L04 |
13 |
10 |
6.5 |
17 |
125 |
9 |
10° |
WC..0402.. |
M2.5*6 |
Q08 |
- |
|
S12M-SWLCR/L06 |
16 |
12 |
7.5 |
20 |
150
|
11 |
13° |
WC..06T3.. |
M3.5*8 |
Q15 |
- |
|
S16N-SWLCR/L06 |
20 |
16 |
9.5 |
27 |
160 |
15 |
10° |
WC..06T3.. |
M3.5*8 |
Q15 |
- |
|
S20Q-SWLCR/L06 |
25 |
20 |
11.5 |
34 |
180
|
18 |
8° |
WC..06T3.. |
M3.5*9 |
Q15 |
- |
|
S25R-SWLCR/L06 |
31 |
25 |
14 |
43 |
200 |
23 |
6° |
WC..06T3.. |
M3.5*9 |
Q15 |
- |
|
H08K-SWLCR/L04 |
10 |
8 |
5 |
16 |
125
|
7 |
13° |
WC..0402.. |
M2.5*5 |
Q08 |
- |
|
H10K-SWLCR/L04 |
13 |
10 |
6.5 |
20 |
125 |
9 |
10° |
WC..0402.. |
M2.5*6 |
Q08 |
- |
|
H12M-SWLCR/L06 |
16 |
12 |
7.5 |
24 |
150
|
11 |
13° |
WC..06T3.. |
M3.5*8 |
Q15 |
- |
|
H16N-SWLCR/L06 |
20 |
16 |
9.5 |
32 |
160 |
15 |
10° |
WC..06T3.. |
M3.5*8 |
Q15 |
- |
|
A08K-SWLCR/L04 |
10 |
8 |
5 |
14 |
125
|
7 |
13° |
WC..0402.. |
M2.5*5 |
Q08 |
√ |
|
A10K-SWLCR/L04 |
13 |
10 |
10 |
17 |
125 |
9 |
10° |
WC..0402.. |
M2.5*6 |
Q08 |
√ |
|
A12M-SWLCR/L06 |
16 |
12 |
6.5 |
20 |
150
|
11 |
13° |
WC..06T3.. |
M3.5*8 |
Q15 |
√ |
|
A16N-SWLCR/L06 |
20 |
16 |
7.5 |
27 |
160 |
15 |
10° |
WC..06T3.. |
M3.5*8 |
Q15 |
√ |
|
A20Q-SWLCR/L06 |
25 |
20 |
9.5 |
34 |
180
|
18 |
8° |
WC..06T3.. |
M3.5*8 |
Q15 |
√ |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
