| 內孔車刀 |
當前位置：首頁 > 內孔車刀 |
 |
|
型 號 |
最小加工徑 |
|
|
|
|
|
|
刀片 |
螺絲 |
扳手 |
出水孔 |
|

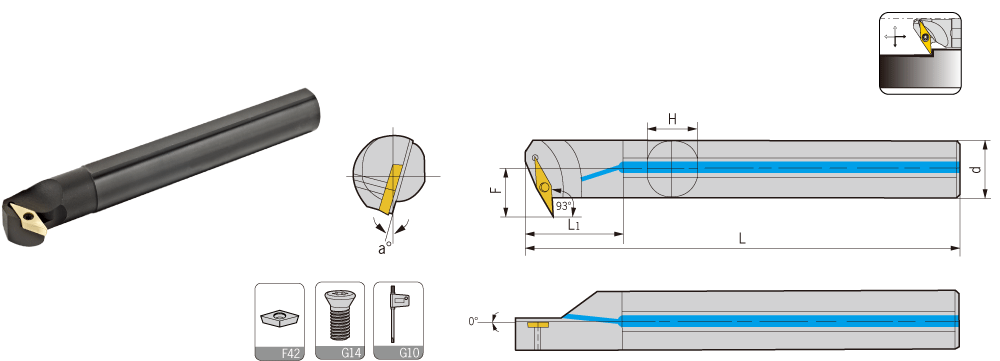

Specification |
Min dia |
d |
F |
L1 |
L |
H |
a |
Insert |
Screw |
Wrench |
Water hole |
|
S16N-SVZBR/L11 |
22 |
16 |
11.5 |
27 |
160 |
15 |
10° |
VB..1103.. |
M2.5*7 |
Q08 |
- |
|
S20Q-SVZBR/L11 |
27 |
20 |
14 |
34 |
180 |
18 |
8° |
VB..1103.. |
M2.5*7 |
Q08 |
- |
|
H16N-SVZBR/L11 |
22 |
16 |
11.5 |
27 |
160
|
15 |
10° |
VB..1103.. |
M2.5*7 |
Q08 |
- |
|
S16N-SVZCR/L11 |
22 |
16 |
11.5 |
27 |
160 |
15 |
10° |
VC..1103.. |
M2.5*7 |
Q08 |
- |
|
S20Q-SVZCR/L11 |
27 |
20 |
14 |
34 |
180
|
18 |
8° |
VC..1103.. |
M2.5*7 |
Q08 |
- |
|
H16N-SVZCR/L11 |
22 |
16 |
11.5 |
27 |
160 |
15 |
10° |
VC..1103.. |
M2.5*7 |
Q08 |
- |
|
S25R-SVZBR/L16 |
34 |
25 |
19.5 |
43 |
200
|
23 |
8° |
VB..1604.. |
M3.5*9 |
Q15 |
- |
|
S32S-SVZBR/L16 |
42 |
32 |
23.5 |
54 |
250 |
30 |
6° |
VB..1604.. |
M3.5*9 |
Q15 |
- |
|
S40T-SVZBR/L16 |
50 |
40 |
27 |
68 |
300
|
37 |
8° |
VB..1604.. |
M3.5*9 |
Q15 |
- |
|
S25R-SVZCR/L16 |
34 |
25 |
19.5 |
43 |
200 |
23 |
8° |
VC..1604.. |
M3.5*9 |
Q15 |
- |
|
S32S-SVZCR/L16 |
42 |
32 |
23.5 |
54 |
250
|
30 |
6° |
VC..1604.. |
M3.5*9 |
Q15 |
- |
|
S40T-SVZCR/L16 |
50 |
40 |
27 |
68 |
300 |
37 |
8° |
VC..1604.. |
M3.5*9 |
Q15 |
- |
|
A16N-SVZBR/L11 |
22 |
16 |
11.5 |
27 |
160
|
15 |
10° |
VB..1103.. |
M2.5*7 |
Q08 |
√ |
|
A20Q-SVZBR/L11 |
27 |
20 |
14 |
34 |
180 |
18 |
8° |
VB..1103.. |
M2.5*7 |
Q08 |
√ |
|
A16N-SVZCR/L11 |
22 |
16 |
11.5 |
27 |
160
|
15 |
10° |
VC..1103.. |
M2.5*7 |
Q08 |
√ |
|
A20Q-SVZCR/L11 |
27 |
20 |
14 |
34 |
180 |
18 |
8° |
VC..1103.. |
M2.5*7 |
Q08 |
√ |
|
A25R-SVZBR/L16 |
34 |
25 |
19.5 |
43 |
200
|
23 |
8° |
VB..1604.. |
M3.5*9 |
Q15 |
√ |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
