| 內(nèi)孔車刀 |
當(dāng)前位置：首頁 > 內(nèi)孔車刀 |
 |
|
型 號(hào) |
最小加工徑 |
|
|
|
|
|
|
刀片 |
刀墊 |
中心螺絲 |
壓板 |
壓板螺絲 |
扳手 |
出水孔 |
|

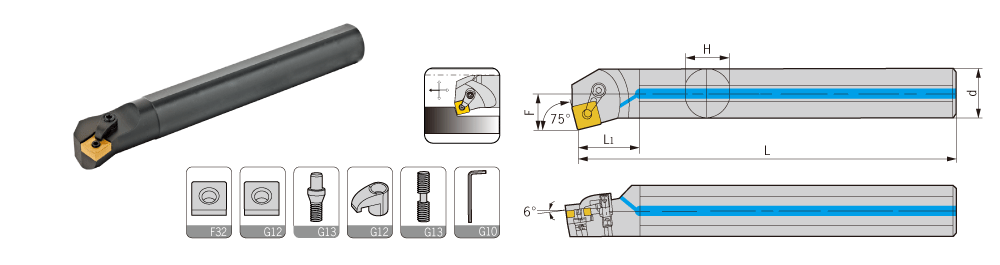

Specification |
Min dia |
d |
F |
L |
L1 |
H |
a |
Insert |
Shim |
Center screw |
Clamp |
Clamp screw |
Wrench |
Water hole |
|
S20Q-MSKNR/L12 |
25 |
20 |
13 |
180 |
34 |
18 |
15° |
SN..1204.. |
- |
MX0611 |
MY0515-A |
ML0516 |
L025 |
- |
|
S25R-MSKNR/L12 |
32 |
25 |
17 |
200 |
43 |
23 |
12° |
SN..1204.. |
- |
MX0613 |
MY0619 |
ML0620 |
L025,L03 |
- |
|
S32S-MSKNR/L12 |
40 |
32 |
22 |
250 |
54
|
30 |
17° |
SN..1204.. |
MS1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
- |
|
S40T-MSKNR/L12 |
50 |
40 |
27 |
300 |
68 |
37 |
15° |
SN..1204.. |
MS1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
- |
|
H20Q-MSKNR/L12 |
25 |
20 |
13 |
180 |
34
|
18 |
15° |
SN..1204.. |
- |
MX0611 |
MY0515-A |
ML0516 |
L025 |
- |
|
H25R-MSKNR/L12 |
32 |
25 |
17 |
200 |
43 |
23 |
12° |
SN..1204.. |
- |
MX0613 |
MY0619 |
ML0620 |
L025,L03 |
- |
|
A20Q-MSKNR/L12 |
25 |
20 |
13 |
180 |
34
|
18 |
15° |
SN..1204.. |
- |
MX0611 |
MY0515-A |
ML0516 |
L025 |
√ |
|
A25R-MSKNR/L12 |
32 |
25 |
17 |
200 |
43 |
23 |
12° |
SN..1204.. |
- |
MX0613 |
MY0619 |
ML0620 |
L025,L03 |
√ |
|
A32S-MSKNR/L12 |
40 |
32 |
22 |
250 |
54
|
30 |
17° |
DN..1504.. |
MS1204 |
MX0617 |
MY0619 |
ML0625 |
L025,L03 |
√ |
| 適用 Suitable:德克刀片 DEREK Insert |
|
|
