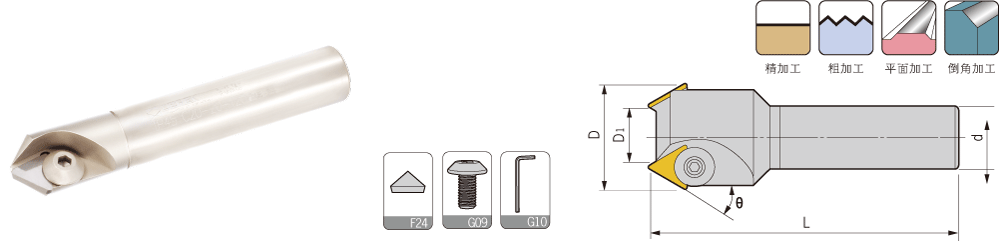

TP60°,45°,30° Chamfering Cutter
TP60度,45度,30度直柄型倒角刀 |
 |
| 型號 |
刃數 |
|
|
|
|
|
刀片型號
|
傘形壓板 |
扳手 |
重量 |
|
Specifcation |
Teeth |
D |
D1 |
d |
L |
θ |
Insert |
Umbrella clamp |
Wrench |
Weight |
|
TP60-
TP45-
TP30-
|
C25-14-M8-1T |
2 |
37.7 |
15.8 |
25 |
120 |
60 |
TPMN1603 |
M060H080-TP |
L04D |
0.55 |
| C20-20-120-1T |
1 |
20.4 |
4 |
20 |
120 |
45 |
TPMN1603 |
M060H080-TP |
L04D |
0.27 |
| C20-32-120-2T |
2 |
30.2 |
12 |
20 |
120 |
45 |
TPMN1603 |
M060H080-TP |
L04D |
0.32 |
| C25-50-160-3T |
3 |
49 |
24 |
25 |
160 |
45 |
TPMN2204 |
M080H120-TP |
L05D |
0.65 |
| C25-40-120-2T |
2 |
39 |
26 |
25 |
120 |
30 |
TPMN1603 |
M060H080-TP |
L04D |
0.53 |
| C32-55-160-3T |
3 |
54.5 |
36 |
32 |
160 |
30 |
TPMN2204 |
M080H120-TP |
L05D |
0.98 |
| 適用 Suitable:德克刀片、三菱刀片 DEREK Or MITSUBISHI Insert |
|
| |
|
| 特點/ Feature |
|
■本刀可30度，45度，60度切削，亦可做倒角。
|
■For chamfering with different angles of 30°,45°and 60°. |
■ 適合一般銑床，綜合切削中心機。
|
■For general milling machine and machine center. |
|
|
