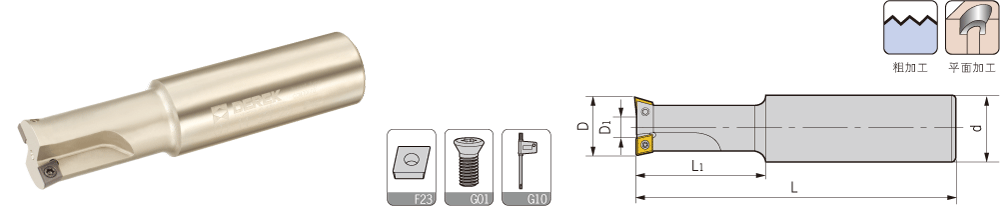

CH Indexable Cutter For Pocketing
CH 螺絲沉頭孔銑刀 |
 |
| 型號 |
刃數(shù) |
適用范圍 |
|
|
|
|
|
刀片型號 |
刀片螺釘 |
扳手 |
重量 |
|
Specifcation |
Teeth |
For |
D |
D1 |
d |
L1 |
L |
Insert |
Insert screw |
Wrench |
Weight |
| CH- |
C25-14-M8-1T |
1 |
M8 |
14 |
2.9 |
25 |
21 |
108 |
CCMT060204 |
M025W060 |
Q08B |
0.32 |
| C25-17.5-M10-2T |
2 |
M10 |
17.5 |
5.3 |
25 |
26 |
115 |
CCMT060204 |
M025W060 |
Q08B |
0.34 |
| C25-20-M12-2T |
2 |
M12 |
20 |
7.8 |
25 |
30 |
120 |
CCMT060204 |
M025W060 |
Q08B |
0.35 |
| C25-23-M14-2T |
2 |
M14 |
23 |
10.8 |
25 |
34.5 |
126 |
CCMT060204 |
M025W060 |
Q08B |
0.40 |
| C32-26-M16-2T |
2 |
M16 |
26 |
8.5 |
32 |
39 |
132 |
CPMT090308 |
M035R080-1 |
Q15B |
0.50 |
| C32-29-M18-2T |
2 |
M18 |
29 |
11.5 |
32 |
43.5 |
138 |
CPMT090308 |
M035R080-1 |
Q15B |
0.65 |
| C32-32-M20-2T |
2 |
M20 |
32 |
14.5 |
32 |
59 |
144 |
CPMT090308 |
M035R080-1 |
Q15B |
0.87 |
| 適用Suitable: 德克、日立刀片 DEREK Or HITACHI Insert |
| |
| 特點/ Feature |
| ■把傳統(tǒng)的鉆孔與沉頭加工結(jié)合于一體，一次加工完成，大幅提高螺絲沉頭孔的加工效率。 |
| ■For drilling and counter-sink machining as a whole. The best choice for machining the head of socket screws. |
|
|
