| 可轉位銑刀桿 |
當前位置：首頁 > 可轉位銑刀桿 |

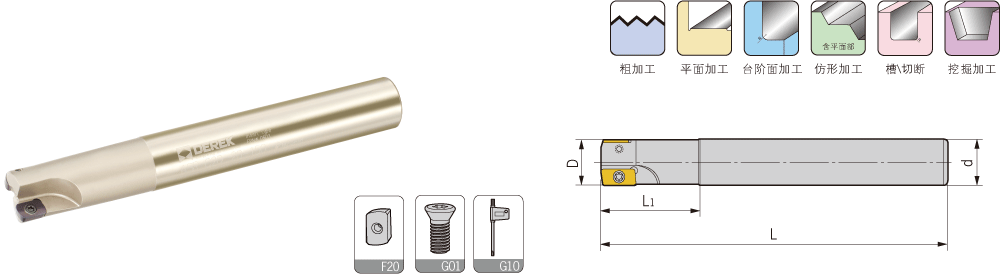

ASR High-feed Milling Cutter
ASR大進給立銑刀 |
 |
| 型號 |
刃數 |
|
|
|
|
刀片型號 |
刀片螺釘 |
旗形扳手 |
重量 |
|
Specifcation |
Teeth |
D |
d |
L1 |
L
|
Insert |
Insert screw |
Wrench |
Weight |
| ASR- |
C16-16-120-2T |
2 |
16 |
16 |
40 |
120 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.17 |
| C16-16-160-2T |
2 |
16 |
16 |
50 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.23 |
| C16-17-120-2T |
2 |
17 |
16 |
27 |
120 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.17 |
| C16-17-160-2T |
2 |
17 |
16 |
27 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.23 |
| C20-20-120-2T |
2 |
20 |
20 |
50 |
120 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.27 |
| C20-20-160-2T |
2 |
20 |
20 |
50 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.36 |
| C20-21-160-2T |
2 |
21 |
20 |
27 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.37 |
| C25-25-160-3T |
3 |
25 |
25 |
60 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.59 |
| C25-25-200-3T |
3 |
25 |
25 |
70 |
200 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.72 |
| C25-26-200-3T |
3 |
26 |
25 |
50 |
200 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.73 |
| C32-32-160-4T |
4 |
32 |
32 |
70 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.88 |
| C32-32-200-4T |
4 |
32 |
32 |
115 |
200 |
EPNW0603TN-8 |
M025W060 |
Q08B |
1.17 |
| C32-33-160-4T |
4 |
33 |
32 |
60 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.94 |
| C32-33-200-4T |
4 |
33 |
32 |
70 |
200 |
EPNW0603TN-8 |
M025W060 |
Q08B |
1.19 |
| C32-35-200-4T |
4 |
35 |
32 |
50 |
200 |
EPNW0603TN-8 |
M025W060 |
Q08B |
1.21 |
| C32-40-160-4T |
4 |
40 |
32 |
50 |
160 |
EPNW0603TN-8 |
M025W060 |
Q08B |
0.93 |
| C32-40-200-4T |
4 |
40 |
32 |
50 |
200 |
EPNW0603TN-8 |
M025W060 |
Q08B |
1.25 |
| 適用Suitable:德克刀片、日立刀片 DEREK Or Hitachi Insert |
| |
| 特點/ Feature |
| ■高進給圓弧銑刀。 |
| ■不考慮缺損對刀片壽命的影響，則每刃進給量FZ設定的較大時壽命也較大，斷削、排削效能好。 |
| ■Excellent for high-feed cutting. |
| ■Increasing per teeth feedrate will improve the tool life of insert without regarding to the defect influence of its tool life,Good design for chip breaking and removing. |
|
|
