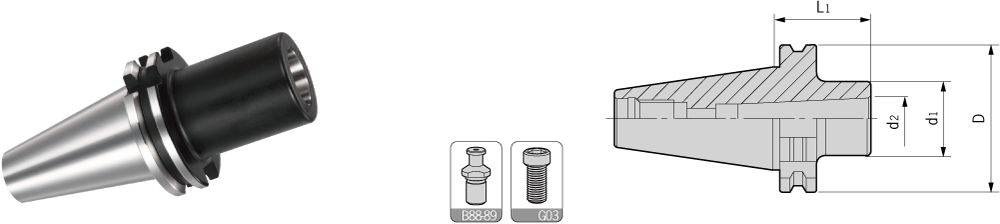

SK-MTB Morse Taper Holder
SK-MTB莫氏錐套刀柄（螺絲鎖緊） |
 |
| 型號 |
莫氏錐度 |
|
|
|
|
拉緊螺釘 |
范圍 |
重量 |
|
Specifcation |
MT.NO |
D |
d1 |
d2 |
L |
Tension screw |
Range |
Weight |
|
SK30- |
MTB1-50 |
1 |
50 |
25 |
12.065 |
50 |
E060U160 |
Φ10-Φ14 |
0.50 |
| MTB2-60 |
2 |
50 |
32 |
17.780 |
60 |
SK30-45-MT2 |
Φ16-Φ22 |
0.55 |
| MTB3-75 |
3 |
50 |
40 |
23.825 |
75 |
SK30-45-MT3 |
Φ24-Φ32 |
0.65 |
|
SK40- |
MTB1-50 |
1 |
63.55 |
25 |
12.065 |
50 |
E060U160 |
Φ10-Φ14 |
0.95 |
| MTB2-50 |
2 |
63.55 |
32 |
17.780 |
50 |
E100U300-MTB |
Φ16-Φ22 |
1.00 |
| MTB3-70 |
3 |
63.55 |
40 |
23.825 |
75 |
SK40-45-MT3 |
Φ24-Φ32 |
1.13 |
| MTB4-95 |
4 |
63.55 |
48 |
31.267 |
90 |
SK40-45-MT4 |
Φ32-Φ50 |
1.35 |
|
SK40- |
MTB1-45 |
1 |
97.50 |
25 |
12.065 |
45 |
E060U250 |
Φ10-Φ14 |
3.59 |
| MTB2-60 |
2 |
97.50 |
32 |
17.780 |
60 |
E100U350 |
Φ16-Φ22 |
3.64 |
| MTB3-65 |
3 |
97.50 |
40 |
23.825 |
65 |
E120U400 |
Φ24-Φ32 |
3.60 |
| MTB4-95 |
4 |
97.50 |
48 |
31.267 |
95 |
E160U400-MTB |
Φ32-Φ50 |
3.88 |
| MTB5-105 |
5 |
97.50 |
63 |
44.399 |
105 |
SK50-45-MT5 |
Φ55-Φ60 |
3.74 |
| 注：報價時含拉緊螺釘。 |
| Notice:Tension screw is included. |
|
|
