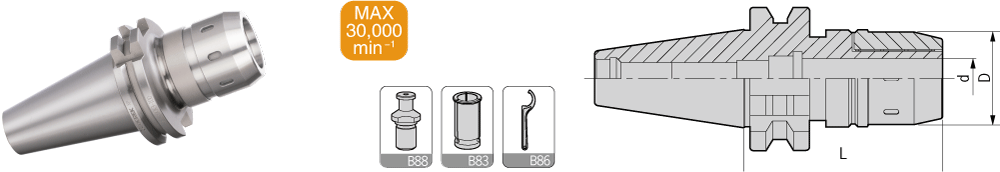

SK-HPC High-Speed Power Chuck
SK-HPC 高速強力刀柄 |
 |
| 型號 |
范圍 |
|
|
|
適用筒夾 |
重量 |
|
Specifcation |
Range |
D |
d |
L |
Suit collet |
Weight |
|
SK30-
SK40-
SK50- |
HPC16-70 |
3-16 |
46 |
16 |
70 |
SC16 |
1.40 |
| HPC20-75 |
6-20 |
51.5 |
20 |
75 |
SC20 |
1.80 |
| HPC16-70 |
3-16 |
50 |
16 |
70 |
SC16 |
1.60 |
| HPC16-105 |
3-16 |
50 |
16 |
105 |
SC16 |
1.80 |
| HPC16-135 |
3-16 |
50 |
16 |
135 |
SC16 |
2.30 |
| HPC20-80 |
6-20 |
51.5 |
20 |
80 |
SC20 |
2.40 |
| HPC20-105 |
6-20 |
51.5 |
20 |
105 |
SC20 |
2.50 |
| HPC20-135 |
6-20 |
51.5 |
20 |
135 |
SC20 |
2.80 |
| HPC32-105 |
6-32 |
70.5 |
32 |
105 |
SC32 |
2.80 |
| HPC32-135 |
6-32 |
70.5 |
32 |
135 |
SC32 |
3.00 |
| HPC16-90 |
3-16 |
50 |
16 |
90 |
SC16 |
3.90 |
| HPC16-110 |
3-16 |
50 |
16 |
110 |
SC16 |
4.10 |
| HPC16-135 |
3-16 |
50 |
16 |
135 |
SC16 |
4.30 |
| HPC16-150 |
3-16 |
50 |
16 |
150 |
SC16 |
4.50 |
| HPC20-105 |
6-20 |
51.5 |
20 |
105 |
SC20 |
4.50 |
| HPC20-135 |
6-20 |
51.5 |
20 |
135 |
SC20 |
4.70 |
| HPC20-150 |
6-20 |
51.5 |
20 |
150 |
SC20 |
4.90 |
| HPC32-110 |
6-32 |
70.5 |
32 |
110 |
SC32 |
5.20 |
| HPC32-135 |
6-32 |
70.5 |
32 |
135 |
SC32 |
5.90 |
| HPC32-165 |
6-32 |
70.5 |
32 |
165 |
SC32 |
6.60 |
| 注：報價時含扳手，筒夾需單獨訂購。 |
| Wrench is included,while collet shall be ordered separately. |
| |
| 特點/ Feature |
|
| ■動平衡設定： G6.3 ； 15,000 rpm。 |
■Balanced: G6.3; 15,000 rpm; |
| ■3D處徑向跳動≤0.01 mm。 |
■Runout (X3D): ≤0.01 mm. |
|
|
