SK-VER Split Synch Tapping Chuck
SK-VER 分體式微補償攻牙刀柄 |
 |
| 型號 |
|
|
|
|
|
攻牙能力 |
適用延長桿 |
重量 |

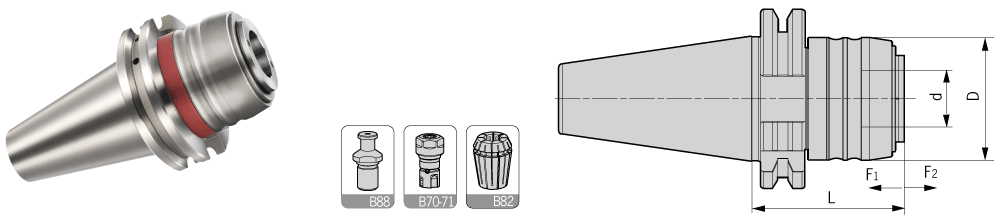

| Specification |
D |
d |
L |
F1 |
F1 |
Tapping capacity |
Suit extender |
Weight |
| SK40- |
VER16-53 |
43.5 |
20 |
53 |
0.2 |
1 |
M3-M12 |
VER16-M24 |
1.05 |
|
VER20-80 |
52 |
25 |
80 |
0.2 |
1 |
M5-M16 |
VER20-M26 |
1.22 |
|
VER25-90 |
60 |
32 |
90
| 0.2 |
1 |
M6-M20 |
VER25-M28 |
1.42 |
|
VER32-106 |
72 |
40 |
106 |
0.2 |
1 |
M10-M24 |
VER32-M30 |
1.71 |
|
VER40-115 |
87 |
50 |
115 |
0.2 |
1 |
M14-M33 |
VER40-M32 |
2.15 |
| SK50- |
VER16-53 |
43.5 |
20 |
53 |
0.2 |
1 |
M3-M12 |
VER16-M24 |
3.36 |
|
VER20-64 |
52 |
25 |
64 |
0.2 |
1 |
M5-M16 |
VER20-M26 |
3.55 |
|
VER25-74 |
60 |
32 |
74 |
0.2 |
1 |
M6-M20 |
VER25-M28 |
3.65 |
|
VER32-110 |
72 |
40 |
100 |
0.2 |
1 |
M10-M24 |
VER32-M30 |
4.15 |
|
VER40-115 |
87 |
50 |
115 |
0.2 |
1 |
M14-M33 |
VER40-M32 |
4.35 |
| 注：延長桿、筒夾和扳手需單獨訂購。 |
| Notice: Extender, collets and wrenchs shall be ordered separately. |
| |
| 特點/ Feature |
|
| ■顯著提高絲錐使用壽命80%以上。 |
■Tap tool life increased by 80% and above; |
| ■有效提高加工生產(chǎn)效率2-4倍。 |
■Work efficiency increased 2 to 4 times; |
| ■明顯提高表面加工質(zhì)量與精度。 |
■Better surface quality; |
| ■選用ER攻絲專用筒夾夾持。 |
■With ER tapping collet; |
| ■無需依賴設(shè)備精度。 |
■Best choice for squeeze taps. |
| ■擠壓絲錐首選。 |
|
|
|
