SK刀柄	當前位置：首頁 > SK刀柄

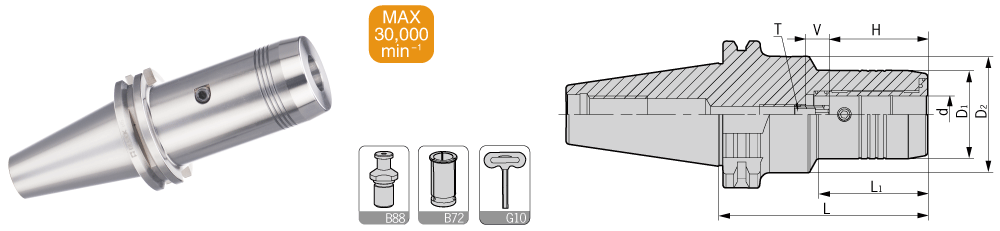

SK-DHP Hydraulic Chuck
SK-DHP 液壓刀柄

型號										壓緊螺釘	適用筒夾	扳手	重量
Specification		d	D1	D2	L1	L	H	V	T	Insert Screw	Suit collet	Wrench	Weight
SK40-	DHP6-65	6	28	50	28	65	27.5	10	M050Z150-D	M080U120-D	-	T04-L	1.26
	DHP6-80.5	6	28	50	44	80.5	27.5	10	M050Z150-D	M080U120-D	-	T04-L	1.35
	DHP6-110	6	28	50	44	110	27.5	10	M050Z150-D	M080U120-D	-	T04-L	1.77
	DHP8-65	8	30	50	23	65	27.5	10	M060Z150-D	M080U140-D	-	T04-L	1.26
	DHP8-80.5	8	30	50	44	80.5	27.5	10	M060Z150-D	M080U140-D	-	T04-L	1.38
	DHP8-110	8	30	50	44	110	27.5	10	M060Z150-D	M080U140-D	-	T04-L	1.84
	DHP10-65	10	32	50	23	65	32.5	10	M060Z150-D	M080U140-D	-	T04-L	1.28
	DHP10-80.5	10	32	50	44	80.5	32.5	10	M060Z150-D	M080U140-D	-	T04-L	1.40
	DHP10-110	10	32	50	44	110	32.5	10	M060Z150-D	M080U140-D	-	T04-L	1.95
	DHP12-65	12	34	50	23	65	37.5	10	M060Z150-D	M080U120-D	D12/0D12	T04-L	1.28
	DHP12-80.5	12	34	50	44	80.5	37.5	10	M060Z150-D	M080U120-D	D12/0D12	T04-L	1.45
	DHP12-110	12	34	50	44	110	37.5	10	M060Z150-D	M080U120-D	D12/0D12	T04-L	2.00
	DHP14-75	14	36	50	30	75	37.5	10	M060Z150-D	M080U140-D	-	T04-L	1.40
	DHP14-80.5	14	36	50	44	80.5	37.5	10	M060Z150-D	M080U140-D	-	T04-L	1.49
	DHP14-110	14	36	50	44	110	37.5	10	M060Z150-D	M080U140-D	-	T04-L	2.02
	DHP16-75	16	38	50	30	75	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	1.44
	DHP16-80.5	16	38	50	48	80.5	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	1.55
	DHP16-110	16	38	50	48	110	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	2.21
	DHP18-75	18	41	50	30	75	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	1.48
	DHP18-80.5	18	41	50	48	80.5	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	1.58
	DHP18-135	18	41	50	48	110	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	2.65
	DHP20-75	20	43	50	30	75	42.5	10	M080Z150P-D	M080U140-D	D20/0D20	T04-L	1.40
	DHP20-80.5	20	43	50	48	80.5	42.5	10	M080Z150P-D	M080U140-D	D20/0D20	T04-L	1.65
	DHP20-110	20	43	50	48	110	42.5	10	M080Z150P-D	M080U140-D	D20/0D20	T04-L	2.70
	DHP25-80.5	25	57	66	26	80.5	51	10	M160Z150P-D	M100U120-D	-	T05-L	2.00
	DHP32-80.5	32	63	80	26	80.5	55	10	M160Z150P-D	M100U180-D	D32/0D32	T05-L	2.20
SK50-	DHP6-90	6	28	50	44	90	27.5	10	M050Z150-D	M080U120-D	-	T04-L	4.03
	DHP6-140	6	28	50	44	140	27.5	10	M050Z150-D	M080U120-D	-	T04-L	4.65
	DHP8-90	8	30	50	44	90	27.5	10	M060Z150-D	M080U140-D	-	T04-L	4.06
	DHP8-140	8	30	50	44	140	27.5	10	M060Z150-D	M080U140-D	-	T04-L	4.68
	DHP10-90	10	32	50	44	90	32.5	10	M060Z150-D	M080U140-D	-	T04-L	4.08
	DHP10-140	10	32	50	44	140	32.5	10	M060Z150-D	M080U140-D	-	T04-L	4.71
	DHP12-90	12	34	50	44	90	37.5	10	M060Z150-D	M080U120-D	D12/OD12	T04-L	4.09
	DHP12-140	12	34	50	44	140	37.5	10	M060Z150-D	M080U120-D	D12/OD12	T04-L	4.73
	DHP14-90	14	36	50	47	90	37.5	10	M060Z150-D	M080U140-D	-	T04-L	4.10
	DHP14-140	14	36	50	47	140	37.5	10	M060Z150-D	M080U140-D	-	T04-L	4.75
	DHP16-90	16	38	50	48	90	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	4.12
	DHP16-140	16	38	50	48	140	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	4.81
	DHP18-90	18	41	50	48	90	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	4.14
	DHP18-140	18	41	50	48	140	42.5	10	M080Z150P-D	M080U140-D	-	T04-L	4.85
	DHP20-80.5	20	43	50	44	80.5	42.5	10	M080Z150P-D	M080U140-D	D20/OD20	T04-L	4.11
	DHP20-90	20	43	50	48	90	42.5	10	M080Z150P-D	M080U140-D	D20/OD20	T04-L	4.35
	DHP20-110	20	43	50	48	110	42.5	10	M080Z150P-D	M080U140-D	D20/OD20	T04-L	4.65
	DHP20-140	20	43	50	48	140	42.5	10	M080Z150P-D	M080U140-D	D20/OD20	T04-L	4.95
	DHP25-105	25	57	-	85.9	105	51	10	M160Z150P-D	M100U120-D	-	T05-L	4.60
	DHP25-140	25	57	-	120.9	140	51	10	M160Z150P-D	M100U120-D	-	T05-L	5.40
	DHP32-115	32	63	-	95.9	115	55	10	M160Z150P-D	M100U180-D	D32/OD32	T05-L	4.85
	DHP32-140	32	63	-	120.9	140	55	10	M160Z150P-D	M100U180-D	D32/OD32	T05-L	5.67

注: 報價含扳手,筒夾需單獨訂購。
Notice: Wre, nch is included,while collet shall be ordered separately.

特點/ Feature
■DHP刀具系列用途高轉速、高精密切削加工，切削效果佳。	■For high-speed and high precision cutting;
■動平衡設定: G2.5; 20,000 rpm。	■Balanced: G2.5; 20,000 rpm;
■3D處徑向跳動≤0.003 mm。	■Runout (X3D): ≤ 0.003 mm.
