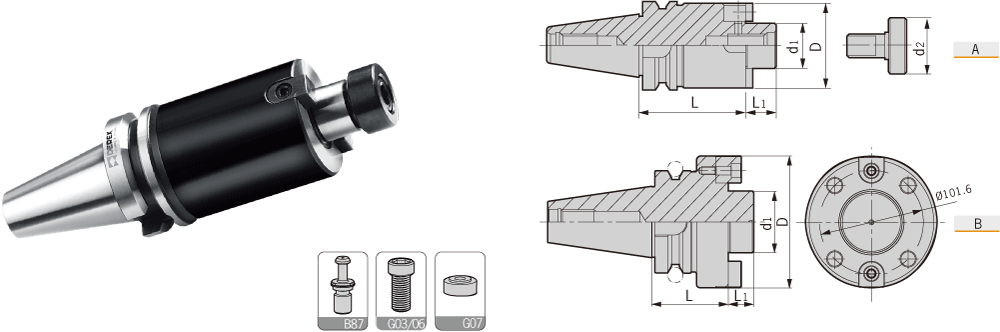

BT-FMA Face Mill Holder
BT-FMA平面銑刀柄（直柄式） |
 |
| 型號(hào) |
圖示 |
|
|
|
|
|
刀盤鎖緊螺釘 |
墊圈 |
重量 |
|
Specifcation |
Figure |
D |
d1 |
d2 |
L |
L1 |
Locking screw for cutter |
Washer |
Weight |
|
BT30-
| FMA25.4-45 |
A |
50 |
25.40 |
31.5 |
45 |
20 |
E120U300 |
- |
1.10 |
| FMA25.4-60 |
A |
50 |
25.40 |
31.5 |
60 |
20 |
E120U300 |
- |
1.30 |
| FMA31.75-45 |
A |
60 |
31.75 |
40 |
45 |
22 |
E160U350 |
- |
1.35 |
|
BT40-
| FMA25.4-45 |
A |
50 |
25.40 |
31.5 |
45 |
20 |
E120U300 |
- |
1.54 |
| FMA25.4-60 |
A |
50 |
25.40 |
31.5 |
60 |
20 |
E120U300 |
- |
1.77 |
| FMA25.4-90 |
A |
50 |
25.40 |
31.5 |
90 |
20 |
E120U300 |
- |
2.23 |
| FMA25.4-105 |
A |
50 |
25.40 |
31.5 |
105 |
20 |
E120U300 |
- |
2.47 |
| FMA31.75-45 |
A |
60 |
31.75 |
40 |
45 |
22 |
E160U350 |
FM-2 |
1.65 |
| FMA31.75-75 |
A |
60 |
31.75 |
40 |
75 |
22 |
E160U350 |
FM-2 |
2.31 |
| FMA31.75-90 |
A |
60 |
31.75 |
40 |
90 |
22 |
E160U350 |
FM-2 |
2.64 |
| FMA38.10-60 |
A |
75 |
38.10 |
50 |
60 |
25 |
E160U350 |
FM-3 |
2.36 |
|
BT50-
| FMA25.4-45 |
A |
50 |
25.40 |
31.5 |
45 |
20 |
E120U300 |
- |
3.87 |
| FMA25.4-90 |
A |
50 |
25.40 |
31.5 |
90 |
20 |
E120U300 |
- |
4.54 |
| FMA25.4-150 |
A |
50 |
25.40 |
31.5 |
150 |
20 |
E120U300 |
- |
5.47 |
| FMA31.75-45 |
A |
60 |
31.75 |
40 |
45 |
22 |
E160Z350-40 |
- |
4.04 |
| FMA31.75-75 |
A |
60 |
31.75 |
40 |
75 |
22 |
E160Z350-40 |
- |
4.72 |
| FMA31.75-105 |
A |
98 |
31.75 |
40 |
105 |
22 |
E160Z350-40 |
- |
7.19 |
| FMA38.10-45 |
A |
80 |
38.10 |
50 |
45 |
25 |
E160Z350-50 |
- |
4.27 |
| FMA38.10-75 |
A |
80 |
38.10 |
50 |
75 |
25 |
E160Z350-50 |
- |
5.48 |
| FMA50.80-45 |
A |
95 |
50.80 |
65 |
45 |
36 |
E240Z350-65 |
- |
4.74 |
| FMA50.80-75 |
A |
95 |
50.80 |
65 |
75 |
36 |
E240Z350-65 |
- |
6.35 |
| FMA47.625F-75 |
B |
128.75 |
47.625 |
- |
75 |
32 |
E160U500 |
- |
7.60 | |
|
