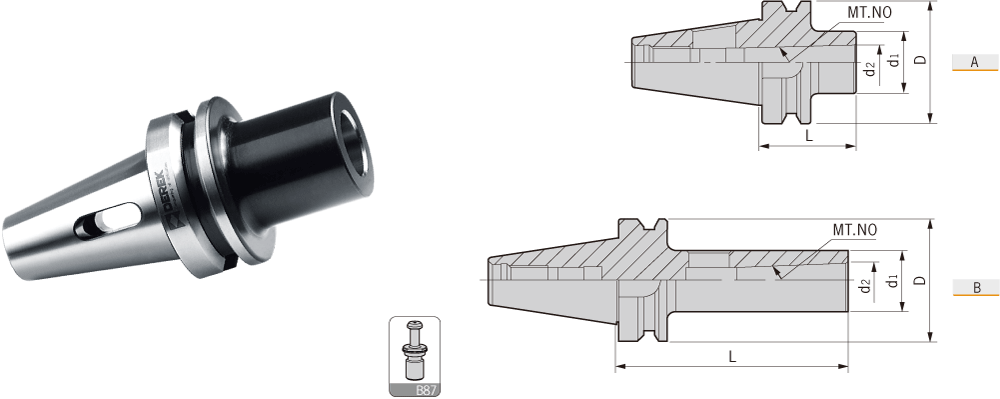

BT-MTA Morse Taper Holder
BT-MTA莫氏錐套刀柄（鉆頭套筒） |
 |
| 型號(hào) |
莫氏錐度 |
圖示 |
|
|
|
|
重量 |
|
Specifcation |
MT.NO |
Figure |
D |
d1 |
d2 |
L |
Weight |
|
BT30-
BT40-
BT80- |
MTA1-45 |
1 |
A |
46 |
25 |
12.065 |
93.4 |
0.55 |
| MTA1-105 |
1 |
A |
46 |
25 |
12.065 |
153.4 |
0.80 |
| MTA2-60 |
2 |
A |
46 |
32 |
17.780 |
108.4 |
0.60 |
| MTA2-120 |
2 |
B |
46 |
32 |
17.780 |
168.4 |
0.90 |
| MTA3-80 |
3 |
A |
46 |
40 |
23.825 |
128.4 |
0.80 |
| MTA1-45 |
1 |
A |
63 |
25 |
12.065 |
110.4 |
1.05 |
| MTA1-120 |
1 |
B |
63 |
25 |
12.065 |
185.4 |
1.28 |
| MTA2-50 |
2 |
A |
63 |
32 |
17.780 |
115.4 |
1.00 |
| MTA2-120 |
2 |
B |
63 |
32 |
17.780 |
185.4 |
1.41 |
| MTA3-70 |
3 |
A |
63 |
40 |
23.825 |
135.4 |
1.13 |
| MTA3-135 |
3 |
B |
63 |
40 |
23.825 |
200.4 |
1.75 |
| MTA4-95 |
4 |
A |
63 |
48 |
31.267 |
160.4 |
1.35 |
| MTA4-165 |
4 |
B |
63 |
48 |
31.267 |
230.4 |
2.30 |
| MTA1-45 |
1 |
A |
100 |
25 |
12.065 |
146.8 |
3.59 |
| MTA1-120 |
1 |
B |
100 |
25 |
12.065 |
221.8 |
3.88 |
| MTA1-180 |
1 |
B |
100 |
25 |
12.065 |
281.8 |
4.12 |
| MTA2-60 |
2 |
A |
100 |
32 |
17.780 |
161.8 |
3.64 |
| MTA2-135 |
2 |
B |
100 |
32 |
17.780 |
236.8 |
4.17 |
| MTA2-180 |
2 |
B |
100 |
32 |
17.780 |
281.8 |
4.39 |
| MTA3-65 |
3 |
A |
100 |
40 |
23.825 |
166.8 |
3.60 |
| MTA3-150 |
3 |
B |
100 |
40 |
23.825 |
251.8 |
4.40 |
| MTA3-180 |
3 |
B |
100 |
40 |
23.825 |
281.8 |
4.73 |
| MTA4-95 |
4 |
A |
100 |
48 |
31.267 |
196.8 |
3.88 |
| MTA4-180 |
4 |
B |
100 |
48 |
31.267 |
281.8 |
5.00 |
| MTA5-105 |
5 |
A |
100 |
63 |
44.399 |
206.8 |
3.74 | |
|
