| BT刀柄 |
當前位置：首頁 > BT刀柄 |

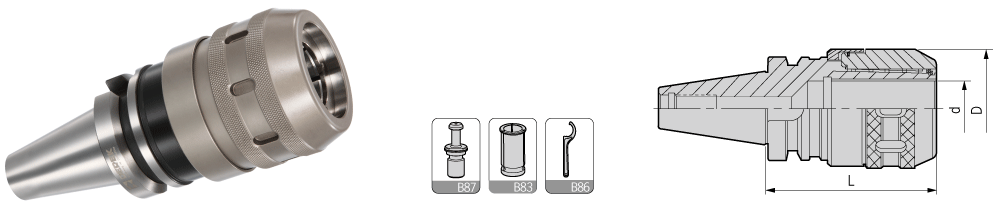

BT-MLC Power Chuck
BT-MLC 強力刀柄 |
 |
| 型號 |
范圍 |
|
|
|
適用筒夾 |
重量 |
|
Specifcation |
Range |
D |
d |
L |
Suit collet |
Weight |
|
BT30- |
MLC20-75 |
6-20 |
51.5 |
20 |
75 |
SC20 |
1.59 |
| MLC20-100 |
6-20 |
51.5 |
20 |
100 |
SC20 |
1.73 |
|
BT40- |
MLC20-80 |
6-20 |
51.5 |
20 |
80 |
SC20 |
1.85 |
| MLC20-100 |
6-20 |
51.5 |
20 |
100 |
SC20 |
2.11 |
| MLC20-135 |
6-20 |
51.5 |
20 |
135 |
SC20 |
2.65 |
| MLC32-105 |
6-32 |
70.5 |
32 |
105 |
SC32 |
2.28 |
| MLC32-135 |
6-32 |
70.5 |
32 |
135 |
SC32 |
2.87 |
| MLC20-105 |
6-20 |
51.5 |
20 |
105 |
SC20 |
4.30 |
| MLC20-150 |
6-20 |
51.5 |
20 |
150 |
SC20 |
5.83 |
| MLC32-110 |
6-32 |
70.5 |
32 |
110 |
SC32 |
4.52 |
| MLC32-135 |
6-32 |
70.5 |
32 |
135 |
SC32 |
5.44 |
|
BT50- |
MLC16-90 |
6-16 |
51.5 |
16 |
90 |
SC16 |
4.21 |
| MLC16-120 |
6-16 |
51.5 |
16 |
120 |
SC16 |
4.70 |
| MLC20-105 |
6-20 |
53 |
20 |
105 |
SC20 |
2.87 |
| MLC20-150 |
6-20 |
53 |
20 |
150 |
SC20 |
4.30 |
| MLC25-100 |
6-25 |
62.5 |
25 |
100 |
SC25 |
4.57 |
| MLC25-135 |
6-25 |
62.5 |
25 |
135 |
SC25 |
4.89 |
| MLC32-110 |
6-32 |
72 |
32 |
110 |
SC32 |
5.44 |
| MLC32-135 |
6-32 |
72 |
32 |
135 |
SC32 |
6.19 |
| MLC32-165 |
6-32 |
72 |
32 |
165 |
SC32 |
6.95 |
| MLC42-115 |
6-42 |
87.5 |
42 |
115 |
SC42 |
5.50 |
| MLC42-135 |
6-42 |
87.5 |
42 |
135 |
SC42 |
6.43 |
| MLC42-165 |
6-42 |
87.5 |
42 |
165 |
SC42 |
7.65 |
| 注：報價時含扳手，筒夾需單獨訂購。 |
| Notice:Wrench is included,while collet shall be ordered separately. |
| 特點/ Feature |
| ■刀柄采用四組220根針狀滾針經特殊排列而成。 |
| ■端面鎖緊增強了本體鋼性強度。 |
| ■立銑刀無振動無滑移實現了最大能力范圍的重銑削加工，跳動精度≤0.02mm。 |
| ■The tool holder uses four special layers with 220 pieces bearing arranged in particular. |
| ■lt can reduce the locking resistanced and also show best performance on heavy cutting. |
| ■The usual length of power milling chuck show that the highest runout accuracy can reach ≤ 0.02mm. |
|
|
