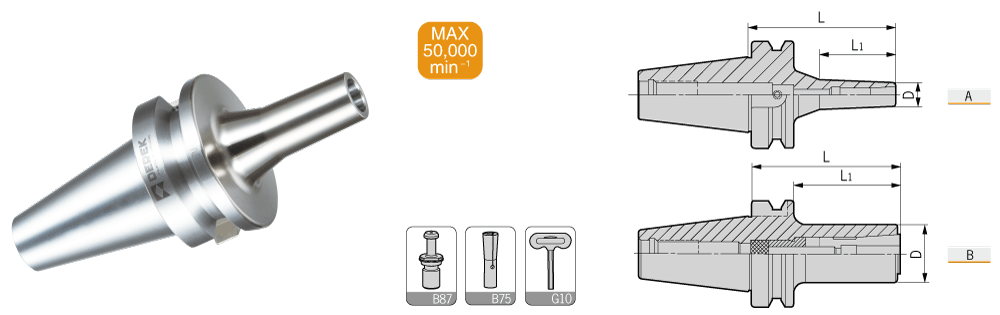

BT-DC Precision Slim Collet Chuck
BT-DC小徑精密筒夾刀柄 |
 |
| 型號 |
圖示 |
|
|
|
適用筒夾 |
拉緊螺釘 |
止動螺母 |
扳手 |
重量 |
|
Specifcation |
Figure |
D |
L1 |
L |
Suit collet |
Tension screw |
Stop screw |
Wrench |
Weight |
|
BT30- |
DC6-60 |
A |
14 |
26 |
60 |
DC6 |
E050U350 |
ZD6-2 |
T04 |
0.90 |
| DC6-90 |
A |
14 |
50 |
90 |
DC6 |
E050U650 |
ZD6-2 |
T04 |
1.10 |
| DC12-70 |
B |
34 |
48 |
70 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
0.60 |
|
BT40- |
DC6-60 |
A |
14 |
26 |
60 |
DC6 |
E050U450 |
ZD6-2 |
T04-L |
1.02 |
| DC6-90 |
A |
14 |
45 |
90 |
DC6 |
E050U450 |
ZD6-2 |
T04-L |
1.05 |
| DC6-120 |
A |
14 |
60 |
120 |
DC6 |
E050U800 |
ZD6-2 |
T04-L |
1.08 |
| DC6-150 |
A |
14 |
76 |
150 |
DC6 |
E050U1300 |
ZD6-2 |
T04-L |
1.11 |
| DC8-90 |
A |
22 |
53 |
90 |
DC8 |
E060U600 |
ZD8-1 |
T05-L |
1.10 |
| DC8-120 |
A |
22 |
65 |
120 |
DC8 |
E060U900 |
ZD8-1 |
T05-L |
1.40 |
| DC10-90 |
B |
28 |
63 |
90 |
DC10 |
E080U300 |
ZD10-2 |
T06-L |
1.20 |
| DC10-120 |
A |
28 |
60 |
120 |
DC10 |
E080U850 |
ZD10-1 |
T06-L |
1.57 |
| DC12-70 |
B |
34 |
43 |
70 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
1.08 |
| DC12-90 |
B |
34 |
63 |
90 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
1.28 |
| DC12-120 |
B |
34 |
93 |
120 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
1.49 |
| DC12-150 |
B |
34 |
123 |
150 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
1.80 |
|
BT50- |
DC10-110 |
A |
28 |
57 |
110 |
DC10 |
E080U800 |
ZD12-1 |
T06-L |
4.20 |
| DC10-150 |
A |
28 |
75 |
150 |
DC10 |
E080U1200 |
ZD12-1 |
T06-L |
4.32 |
| DC12-110 |
B |
34 |
72 |
110 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
4.70 |
| DC12-150 |
A |
34 |
80 |
150 |
DC12 |
E100U1100 |
ZD12-1 |
T08-L |
5.01 |
| 注：報價時含扳手，筒夾需單獨訂購。 |
| Notice:Wrench is included,while collet shall be ordered separately. |
| |
| 特點/ Feature |
|
| ■動平衡設(shè)定： G2.5 ； 30,000 rpm。 |
■Balanced: G2.5; 30,000 rpm; |
| ■3D處徑向跳動≤0.003 mm。 |
■Runout (X3D): ≤0.003 mm. | |
|
