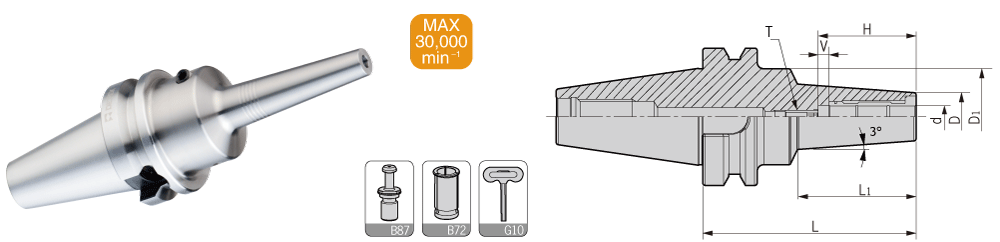

BT-DHP Super Slim Hydraulic Chuck
BT-DHP 超細長液壓刀柄 |
 |
| 型號 |
|
|
|
|
|
|
|
|
壓緊螺釘 |
適用筒夾 |
T型加長扳手 |
重量 |
|
Specifcation |
d |
D |
D1 |
H |
V |
L |
L1 |
T |
Insert Screw |
Suit collet |
Wrench-T |
Weight |
|
BT30- |
DHP4S-85 |
4 |
11 |
46 |
24 |
- |
85 |
42 |
- |
M080U120-D |
- |
T04-L |
0.70 |
| DHP6S-115 |
6 |
13 |
46 |
40 |
10 |
115 |
74 |
M050Z150-D |
M080U120-D |
- |
T04-L |
0.90 |
| DHP8S-115 |
8 |
15 |
46 |
40 |
10 |
115 |
74 |
M060Z150-D |
M080U140-D |
- |
T04-L |
0.90 |
|
BT40- |
DHP4S-90 |
4 |
11 |
46 |
24 |
- |
90 |
42 |
- |
M080U120-D |
- |
T04-L |
1.10 |
| DHP4S-120 |
4 |
11 |
46 |
24 |
- |
120 |
72 |
- |
M080U120-D |
- |
T04-L |
1.30 |
| DHP6S-120 |
6 |
13 |
46 |
40 |
10 |
120 |
74 |
M050Z150-D |
M080U120-D |
- |
T04-L |
1.40 |
| DHP6S-150 |
6 |
13 |
46 |
40 |
10 |
150 |
104 |
M050Z150-D |
M080U120-D |
- |
T04-L |
1.50 |
| DHP8S-120 |
8 |
15 |
46 |
40 |
10 |
120 |
74 |
M060Z150-D |
M080U140-D |
- |
T04-L |
1.40 |
| DHP8S-150 |
8 |
15 |
46 |
40 |
10 |
150 |
104 |
M060Z150-D |
M080U140-D |
- |
T04-L |
1.50 |
| DHP10S-120 |
10 |
17 |
46 |
41 |
10 |
120 |
74 |
M080Z150P-D |
M080U140-D |
- |
T04-L |
1.40 |
| DHP10S-150 |
10 |
17 |
46 |
41 |
10 |
150 |
104 |
M080Z150P-D |
M080U140-D |
- |
T04-L |
1.50 |
| DHP12S-120 |
12 |
19 |
46 |
46 |
10 |
120 |
75 |
M080Z150P-D |
M080U120-D |
D12/OD12 |
T04-L |
1.40 |
| DHP12S-150 |
12 |
19 |
46 |
46 |
10 |
150 |
105 |
M080Z150P-D |
M080U120-D |
D12/OD12 |
T04-L |
1.50 |
| 注：報價時含扳手，筒夾需單獨訂購。 |
| Notice:Wrench is included,while collet shall be ordered separately. |
| |
| 特點/ Feature |
|
| ■DHP刀具系列用途高轉速、高精密切削加工，切削效果佳。 |
■For high-speed and high precision cutting; |
| ■動平衡設定: G2.5；25,000 rpm。 |
■Balanced: G2.5; 25,000 rpm; |
| ■3D處徑向跳動≤0.003 mm。 |
■Runout (X3D): ≤0.003 mm. |
| |
|
