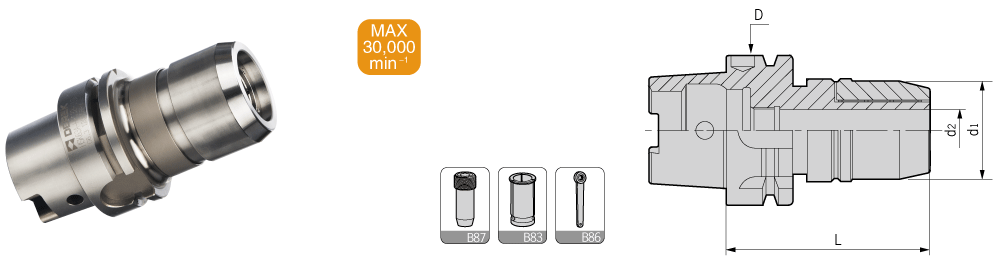

HSK-A-HPM High-Speed Power Chuck
HSK-A-HPM 高速?gòu)?qiáng)力刀柄 |
 |
| 型號 |
夾持范圍 |
|
|
|
|
|
適用筒夾 |
重量 |
|
Specifcation |
Clamping range |
D |
d1 |
d2 |
L1 |
L |
Suit collet |
Weight |
|
HSK50A-
HSK63A-
HSK100A- |
HPM16-80 |
3-16 |
50 |
46 |
16 |
54 |
80 |
SC16 |
1.00 |
| HPM16-80 |
3-16 |
63 |
46 |
16 |
54 |
80 |
SC16 |
1.30 |
| HPM16-100 |
3-16 |
63 |
46 |
16 |
74 |
100 |
SC16 |
1.50 |
| HPM20-110 |
6-20 |
63 |
55 |
20 |
59 |
110 |
SC20 |
1.70 |
| HPM32-110 |
6-32 |
63 |
68 |
32 |
89 |
110 |
SC32 |
2.50 |
| HPM16-115 |
3-16 |
100 |
46 |
16 |
86 |
115 |
SC16 |
3.60 |
| HPM20-105 |
6-20 |
100 |
55 |
20 |
86 |
105 |
SC20 |
4.20 |
| HPM32-135 |
6-32 |
100 |
68 |
32 |
86 |
135 |
SC32 |
4.50 |
| HPM32-135 |
6-32 |
100 |
68 |
32 |
86 |
135 |
SC32 |
5.00 |
| 注：扳手和筒夾需單獨訂購。 |
| Notice:Wrench and collets shall be ordered separately. |
| |
| 特點/ Feature |
|
| ■動平衡設定: G2.5；20,000 rpm。 |
■Balanced: G2.5; 20,000 rpm; |
■3D處徑向跳動≤0.01mm。
|
■Runout (X3D): ≤ 0.01mm. |
|
|
|
|
