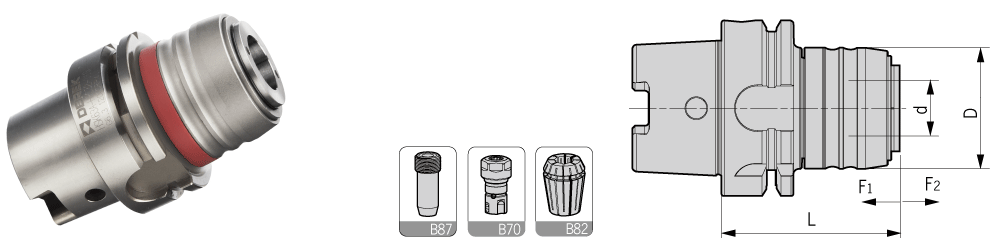

HSK-A-VER Split Synch Tapping Chuck
HSK-A-VER 分體式微補償攻牙刀柄 |
 |
| 型號 |
|
|
|
|
|
攻牙能力 |
適用延長桿 |
重量 |
|
Specifcation |
D |
d |
L |
F1 |
F2 |
Tapping capacity |
Suit extender |
Weight |
|
HSK40A- |
VER16-69 |
43.5 |
20 |
69 |
0.2 |
1 |
M3-M12 |
VER16-M24 |
0.54 |
| VER20-80 |
52 |
25 |
80 |
0.2 |
1 |
M5-M16 |
VER20-M26 |
0.59 |
| VER25-90 |
60 |
32 |
90 |
0.2 |
1 |
M6-M20 |
VER25-M28 |
0.65 |
|
HSK50A- |
VER16-70 |
43.5 |
20 |
70 |
0.2 |
1 |
M3-M12 |
VER16-M24 |
0.66 |
| VER20-87 |
52 |
25 |
87 |
0.2 |
1 |
M5-M16 |
VER20-M26 |
0.80 |
|
VER25-97 |
60 |
32 |
97 |
0.2 |
1 |
M6-M20 |
VER25-M28 |
0.96 |
|
HSK63A- |
VER16-64 |
43.5 |
20 |
64 |
0.2 |
1 |
M3-M12 |
VER16-M24 |
0.88 |
| VER20-87 |
52 |
25 |
87 |
0.2 |
1 |
M5-M16 |
VER20-M26 |
1.06 |
| VER25-97 |
60 |
32 |
97 |
0.2 |
1 |
M6-M20 |
VER25-M28 |
1.21 |
| VER32-113 |
72 |
40 |
113 |
0.2 |
1 |
M10-M24 |
VER32-M30 |
1.61 |
|
VER40-122 |
87 |
50 |
122 |
0.2 |
1 |
M14-M33 |
VER40-M32 |
1.85 |
|
HSK100A- |
VER16-70 |
43.5 |
20 |
70 |
0.2 |
1 |
M3-M12 |
VER16-M24 |
3.21 |
| VER20-82 |
52 |
25 |
82 |
0.2 |
1 |
M5-M16 |
VER20-M26 |
3.58 |
| VER25-91 |
60 |
32 |
91 |
0.2 |
1 |
M6-M20 |
VER25-M28 |
3.95 |
| VER32-110 |
72 |
40 |
110 |
0.2 |
1 |
M10-M24 |
VER32-M30 |
4.25 |
| VER40-115 |
87 |
50 |
115 |
0.2 |
1 |
M14-M33 |
VER40-M32 |
4.45 |
| 注：延長桿、筒夾和扳手需單獨訂購。 |
| Notice: Extender, collets and wrenchs shall be ordered separately. |
| 特點/ Feature |
|
| ■顯著提高絲錐使用壽命80%以上。 |
■Tap tool life increased by 80% and above; |
| ■有效提高加工生產效率2-4倍。 |
■Work efficiency increased 2 to 4 times; |
| ■明顯提高表面加工質量與精度。 |
■Better workpiece surface quality; |
| ■無需依賴設備精度。 |
■With ER tapping collet; |
| ■擠壓絲錐首選。 |
■Best choice for squeeze taps. |
|
|
