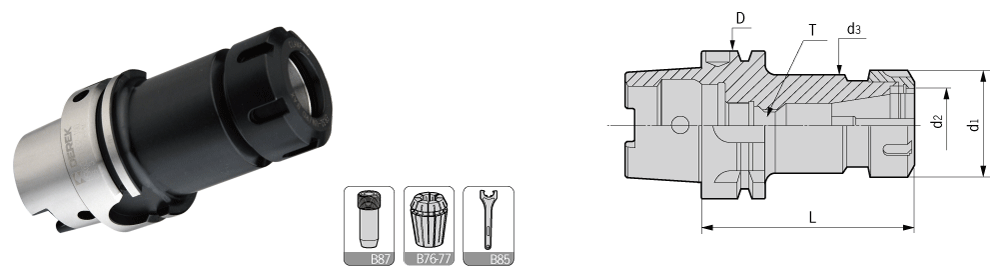

HSK-A-ER Spring Collet Chuck
HSK-A-ER 彈性筒夾刀柄 |
 |
| 型號 |
|
|
|
|
|
重量 |
|
Specifcation |
D |
d1 |
d2 |
L |
T |
Weight |
|
HSK40A- |
ER20-80 |
40 |
34 |
20 |
80 |
- |
0.55 |
| ER25-80 |
40 |
42 |
25 |
80 |
- |
0.65 |
| ER32-100 |
40 |
50 |
32 |
100 |
M160F200 |
0.90 |
|
HSK50A- |
ER16-75 |
50 |
28 |
16 |
75 |
- |
0.50 |
| ER16-100 |
50 |
28 |
16 |
100 |
M100F200 |
0.60 |
| ER20-75 |
50 |
34 |
20 |
75 |
- |
0.70 |
| ER20-100 |
50 |
34 |
20 |
100 |
M120F200 |
0.90 |
| ER25-80 |
50 |
42 |
25 |
80 |
- |
1.00 |
| ER25-100 |
50 |
42 |
25 |
100 |
M160F200 |
1.10 |
| ER25-135 |
50 |
42 |
25 |
135 |
M160F200 |
1.40 |
| ER32-100 |
50 |
50 |
32 |
100 |
- |
1.45 |
| ER32-135 |
50 |
50 |
32 |
135 |
M160F200 |
1.90 |
| ER32-160 |
50 |
50 |
32 |
160 |
M160F200 |
2.40 |
|
HSK63A- |
ER16-75 |
63 |
28 |
16 |
75 |
- |
1.00 |
| ER16-100 |
63 |
28 |
16 |
100 |
M100F200 |
1.10 |
| ER16-120 |
63 |
28 |
16 |
120 |
M100F200 |
1.20 |
| ER16-160 |
63 |
28 |
16 |
160 |
M100F200 |
1.40 |
| ER20-80 |
63 |
34 |
20 |
80 |
- |
1.00 |
| ER20-100 |
63 |
34 |
20 |
100 |
M120F200 |
1.20 |
| ER20-120 |
63 |
34 |
20 |
120 |
M120F200 |
1.30 |
| ER20-160 |
63 |
34 |
20 |
160 |
M120F200 |
1.70 |
| ER25-80 |
63 |
42 |
25 |
80 |
- |
1.10 |
| ER25-100 |
63 |
42 |
25 |
100 |
M160F200 |
1.40 |
| ER25-120 |
63 |
42 |
25 |
120 |
M160F200 |
1.80 |
| ER25-150 |
63 |
42 |
25 |
150 |
M160F200 |
2.00 |
| ER32-100 |
63 |
50 |
32 |
100 |
- |
1.60 |
| ER32-125 |
63 |
50 |
32 |
125 |
M160F200 |
2.00 |
| ER32-160 |
63 |
50 |
32 |
160 |
M160F200 |
2.50 |
| ER40-100 |
63 |
63 |
40 |
100 |
- |
2.40 |
| ER40-120 |
63 |
63 |
40 |
120 |
M200F200-P2 |
2.60 |
| ER40-160 |
63 |
63 |
40 |
160 |
M200F200-P2 |
2.95 |
|
HSK100A- |
ER16-100 |
100 |
28 |
16 |
100 |
M100F200 |
3.40 |
| ER16-160 |
100 |
28 |
16 |
160 |
M100F200 |
3.70 |
| ER20-100 |
100 |
34 |
20 |
100 |
M120F200 |
3.50 |
| ER20-160 |
100 |
34 |
20 |
160 |
M120F200 |
3.90 |
| ER25-100 |
100 |
42 |
25 |
100 |
M160F200 |
3.70 |
| ER25-160 |
100 |
42 |
25 |
160 |
M160F200 |
4.20 |
| ER25-200 |
100 |
42 |
25 |
200 |
M160F200 |
4.70 |
| ER32-100 |
100 |
50 |
32 |
100 |
- |
3.90 |
| ER32-160 |
100 |
50 |
32 |
160 |
M160F200 |
4.70 |
| ER32-200 |
100 |
50 |
32 |
200 |
M160F200 |
5.20 |
| ER40-100 |
100 |
63 |
40 |
100 |
M200F200-P2 |
4.30 |
| ER40-160 |
100 |
63 |
40 |
160 |
M200F200-P2 |
5.00 |
| ER40-200 |
100 |
63 |
40 |
200 |
M200F200-P2 |
5.60 |
| 注：“T”軸向限位螺釘、筒夾與扳手需單獨另購。 |
| Notice: “T” Axial fix screw、collets and wrenchs shall be ordered separately. |
| 特點/ Feature |
|
| ■動平衡設定: G6.3；15,000 rpm。 |
■Balanced: G6.3; 15,000 rpm; |
| ■3D處徑向跳動≤0.01 mm。 |
■Runout (X3D): ≤0.01 mm. |
|
|
