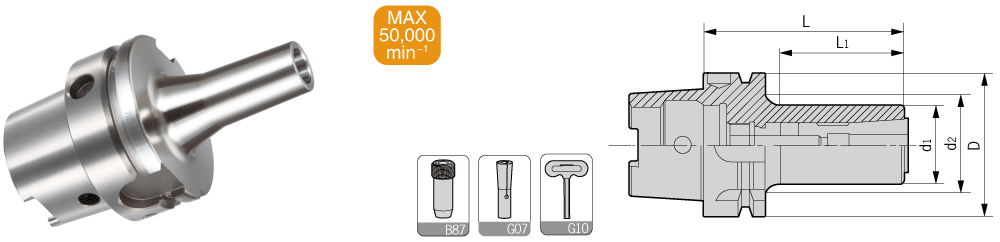

HSK-A-DC Precision Slim Collet Chuck
HSK-A-DC 小徑精密筒夾刀柄 |
 |
| 型號 |
|
|
|
|
|
適用筒夾 |
拉緊螺釘 |
止動螺母 |
T型扳手 |
重量 |
|
Specifcation |
D |
d1 |
d2 |
L1 |
L |
Suit collet |
Tension screw |
Stop screw |
Wrench |
Weight |
|
HSK50A-
HSK63A- |
DC6-75 |
50 |
14 |
22.5 |
34 |
75 |
DC6 |
E050U250 |
ZD6-4 |
T04 |
0.67 |
| DC6-100 |
50 |
14 |
29 |
48 |
100 |
DC6 |
E050U500 |
ZD6-4 |
T04 |
0.70 |
| DC6-75 |
63 |
14 |
22.5 |
34 |
75 |
DC6 |
E050U200 |
ZD6-5 |
T04 |
0.80 |
| DC6-95 |
63 |
14 |
29 |
45 |
95 |
DC6 |
E050U400 |
ZD6-5 |
T04 |
0.90 |
| DC6-120 |
63 |
14 |
37 |
53 |
120 |
DC6 |
E050U650 |
ZD6-5 |
T04 |
1.10 |
| DC6-150 |
63 |
14 |
40 |
80 |
150 |
DC6 |
E050U950 |
ZD6-5 |
T04 |
1.20 |
| DC8-100 |
63 |
22 |
37 |
48 |
100 |
DC8 |
E060U400 |
ZD8-2 |
T05 |
1.10 |
| DC10-110 |
63 |
28 |
45 |
55 |
110 |
DC10 |
E080U300 |
ZD10-2 |
T06-L |
1.20 |
| DC12-120 |
63 |
34 |
51.5 |
65 |
120 |
DC12 |
E100U350 |
ZD12-1 |
T08-L |
1.30 |
| 注：報價時含扳手，筒夾需單獨訂購。 |
| Notice:Wrench is included,while collet shall be ordered separately. |
| 特點/ Feature |
|
| ■動平衡設(shè)定: G2.5；30,000 rpm。 |
■Balanced: G2.5; 30,000 rpm; |
| ■3D處徑向跳動≤0.003 mm。 |
■Runout (X3D): ≤ 0.003 mm. |
|
|
