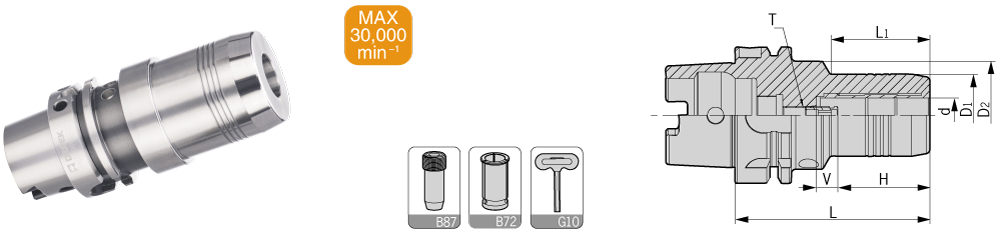

HSK-A-DHP Hydraulic Chuck
HSK-A-DHP 液壓刀柄

型號										壓緊螺釘	適用筒夾	扳手	重量
Specifcation		d	D1	D2	H	V	L1	L	T	Insert Screw	Suit collet	Wrench	Weight
HSK40A-	DHP6-70	6	28	34	27.5	10	28	70	M050Z150-D	M080U120-D	-	T04-L	0.55
	DHP8-70	8	30	34	27.5	10	28	70	M060Z150-D	M080U140-D	-	T04-L	0.56
	DHP10-75	10	32	34	32.5	10	34	75	M060Z150-D	M080U140-D	-	T04-L	0.61
	DHP12-85	12	34	34	37.5	10	-	85	M060Z150-D	M080U120-D	D12/OD12	T04-L	0.68
HSK50A-	DHP6-70	6	28	40	27.5	10	28	70	M050Z150-D	M080U120-D	-	T04-L	0.74
	DHP8-70	8	30	40	27.5	10	28	70	M050Z150-D	M080U140-D	-	T04-L	0.75
	DHP10-80	10	32	40	32.5	10	34	80	M060Z150-D	M080U140-D	-	T04-L	0.82
	DHP12-85	12	34	40	37.5	10	44	85	M060Z150-D	M080U120-D	D12/OD12	T04-L	0.87
	DHP14-85	14	36	40	37.5	10	44	85	M060Z150-D	M080U140-D	-	T04-L	0.90
	DHP16-90	16	38	60	42.5	10	30	90	M080Z150P-D	M080U140-D	-	T04-L	0.94
	DHP18-90	18	41	-	42.5	10	-	90	M080Z150P-D	M080U140-D	-	T04-L	0.96
	DHP20-90	20	42	-	42.5	10	-	90	M080Z150P-D	M080U140-D	D20/OD20	T04-L	0.99
HSK63A-	DHP6-70	6	28	50	27.5	10	24	70	M050Z150-D	M080U120-D	-	T04-L	1.01
	DHP8-70	8	30	50	27.5	10	24	70	M060Z150-D	M080U140-D	-	T04-L	1.02
	DHP10-80	10	32	50	32.5	10	35	80	M060Z150-D	M080U140-D	-	T04-L	1.08
	DHP12-85	12	34	50	37.5	10	40	85	M060Z150-D	M080U120-D	D12/OD12	T04-L	1.13
	DHP14-85	14	36	50	37.5	10	40	85	M060Z150-D	M080U140-D	-	T04-L	1.17
	DHP16-90	16	38	50	42.5	10	46	90	M080Z150P-D	M080U140-D	-	T04-L	1.21
	DHP18-90	18	41	50	42.5	10	47	90	M080Z150P-D	M080U140-D	-	T04-L	1.22
	DHP20-90	20	43	50	42.5	10	48	90	M080Z150P-D	M080U140-D	D20/OD20	T04-L	1.25
	DHP25-120	25	57	63	51	10	59	120	M160Z150P-D	M080U120-D	-	T05-L	2.17
	DHP32-125	32	63	75	55	10	63	125	M160Z150P-D	M080U180-D	D32/OD32	T05-L	2.54
HSK100A-	DHP6-75	6	28	54	27.5	10	26	75	M050Z150-D	M080U120-D	-	T04-L	2.40
	DHP8-75	8	30	54	27.5	10	26	75	M060Z150-D	M080U140-D	-	T04-L	2.41
	DHP10-90	10	32	50	32.5	10	42	90	M060Z150-D	M080U140-D	-	T04-L	2.48
	DHP12-95	12	34	50	37.5	10	47	95	M060Z150-D	M080U120-D	D12/OD12	T04-L	2.53
	DHP14-95	14	36	50	37.5	10	47	95	M060Z150-D	M080U140-D	-	T04-L	2.58
	DHP16-100	16	38	50	42.5	10	53	100	M080Z150P-D	M080U140-D	-	T04-L	2.61
	DHP18-100	18	41	50	42.5	10	53	100	M080Z150P-D	M080U140-D	-	T04-L	2.66
	DHP20-105	20	43	50	42.5	10	59	105	M080Z150P-D	M080U140-D	D20/OD20	T04-L	2.75
	DHP25-110	25	57	63	51	10	62	110	M160Z150P-D	M100U120-D	-	T05-L	3.39
	DHP32-110	32	63	75	55	10	62	110	M160Z150P-D	M100U180-D	D32/OD32	T05-L	3.66
HSK63A-	DHP6-150	6	28	50	27.5	10	103	150	M050Z150-D	MO80U120-D	-	T04-L	1.30
	DHP6-200	6	28	50	27.5	10	103	200	M050Z150-D	MO80U120-D	-	T04-L	1.65
	DHP8-150	8	30	50	27.5	10	104	150	M060Z150-D	MO80U140-D	-	T04-L	1.44
	DHP8-200	8	30	50	27.5	10	104	200	M060Z150-D	MO80U140-D	-	T04-L	1.74
	DHP10-150	10	32	50	32.5	10	104	150	M060Z150-D	MO80U140-D	-	T04-L	1.51
	DHP10-200	10	32	50	32.5	10	104	200	M060Z150-D	MO80U140-D	-	T04-L	1.90
	DHP12-150	12	34	50	37.5	10	105	150	M060Z150-D	MO80U120-D	D12/OD12	T04-L	1.58
	DHP12-200	12	34	50	37.5	10	105	200	M060Z150-D	MO80U120-D	D12/OD12	T04-L	1.92
	DHP14-150	14	36	50	37.5	10	105	150	M060Z150-D	MO80U140-D	-	T04-L	2.11
	DHP14-200	14	36	50	37.5	10	105	200	M060Z150-D	MO80U140-D	-	T04-L	2.52
	DHP16-150	16	38	50	42.5	10	106	150	M080Z150P-D	MO80U140-D	-	T04-L	1.71
	DHP16-200	16	38	50	42.5	10	106	200	M080Z150P-D	MO80U140-D	-	T04-L	2.46
	DHP18-150	18	41	50	42.5	10	107	150	M080Z150P-D	MO80U140-D	-	T04-L	1.83
	DHP18-200	18	41	50	42.5	10	107	200	M080Z150P-D	MO80U140-D	-	T04-L	2.55
	DH20-150	20	43	50	42.5	10	108	150	M080Z150P-D	MO80U140-D	D20/OD20	T04-L	1.91
	DHP20-200	20	43	50	42.5	10	108	200	M080Z150P-D	MO80U140-D	D20/OD20	T04-L	2.67

注：報價時含扳手，筒夾需單獨訂購。
Notice:Wrench is included,while collet is to be ordered separately.

特點/ Feature
■DHP刀具系列用途高轉速、高精密切削加工，切削效果佳。	■Suitable for high-speed and high precision cutting;
■動平衡設定： G2.5 ； 20,000 rpm。	■Balanced: G2.5; 20,000 rpm;
■3D處徑向跳動0.003 mm。	■Runout (X3D): < 0.003 mm.
