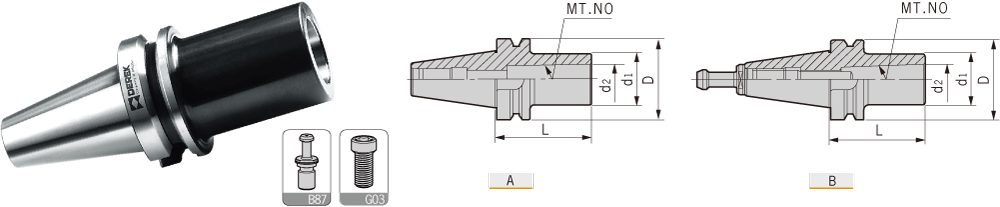

BT-MTB Morse Taper Holder
BT-MTB莫氏錐套刀柄（螺絲鎖緊） |
 |
| 型號 |
莫氏錐度 |
圖示 |
|
|
|
|
拉緊螺釘 |
范圍 |
重量 |
|
Specifcation |
MT.NO |
Figure |
D |
d1 |
d2 |
L |
Tension screw |
Range |
Weight |
|
BT30-
BT40-
BT50- |
MTB1-45 |
1 |
A |
46 |
25 |
12.065 |
45 |
E060U160 |
Φ10-Φ14 |
0.55 |
| MTB2-60 |
2 |
B |
46 |
32 |
17.780 |
60 |
BT30-45-MT2 |
Φ16-Φ22 |
0.60 |
| MTB1-45 |
1 |
A |
63 |
25 |
12.065 |
45 |
E060U160 |
Φ10-Φ14 |
1.00 |
| MTB2-50 |
2 |
A |
63 |
32 |
17.780 |
50 |
E100U300-MTB |
Φ16-Φ22 |
1.02 |
| MTB3-75 |
3 |
B |
63 |
40 |
23.825 |
75 |
BT40-45-MT3 |
Φ24-Φ32 |
1.19 |
| MTB4-90 |
4 |
B |
63 |
48 |
31.267 |
90 |
BT40-45-MT4 |
Φ32-Φ50 |
1.33 |
| MTB1-45 |
1 |
A |
100 |
25 |
12.065 |
45 |
E060U250 |
Φ10-Φ14 |
3.30 |
| MTB2-45 |
2 |
A |
100 |
32 |
17.780 |
45 |
E100U350 |
Φ16-Φ22 |
3.57 |
| MTB3-60 |
3 |
A |
100 |
40 |
23.825 |
60 |
E120U400 |
Φ24-Φ32 |
3.61 |
| MTB4-75 |
4 |
A |
100 |
50 |
31.267 |
75 |
E160U400-MTB |
Φ32-Φ50 |
3.68 |
| MTB5-120 |
5 |
B |
100 |
70 |
44.399 |
120 |
BT50-45-MT5 |
Φ55-Φ60 |
4.10 |
| 注：報價時含長拉釘。 |
| Notice:Long pull stud is included. |
|
|
