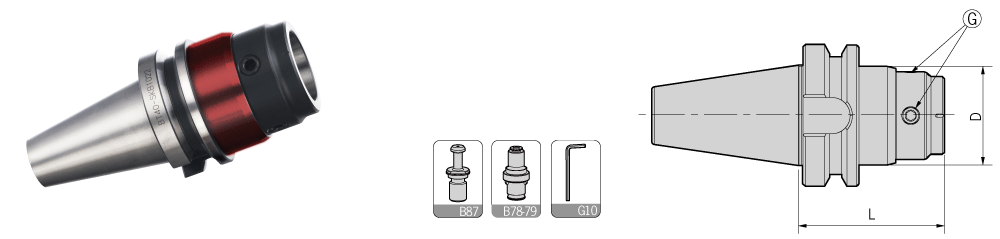

BT-TPG Split Rigid Tapping Chuck
BT-TPG 分體式剛性攻牙刀柄 |
 |
| |
型號 |
|
|
|
適用筒夾 |
L型扳手 |
攻牙能力 |
重量 |
| |
Specifcation |
D |
L |
G |
Suit collet |
Wrench |
Tapping capacity |
Weight |
|
|
BT30- |
TPG312 |
44 |
65 |
M080Z100-30P |
TPE312 |
L04D |
M3-M12 |
0.73 |
| |
TPG1024 |
56 |
85 |
M100Z120-30P |
TPE1024 |
L05D |
M10-M24 |
0.89 |
|
BT40- |
TPG312 |
44 |
65 |
M080Z100-30P |
TPE312 |
L04D |
M3-M12 |
1.23 |
| |
TPG1024 |
56 |
75 |
M100Z120-30P |
TPE1024 |
L05D |
M10-M24 |
1.39 |
|
BT50- |
TPG312 |
44 |
80 |
M080Z100-30P |
TPE312 |
L04D |
M3-M12 |
3.88 |
|
TPG1024 |
56 |
90 |
100Z120-30P |
TPE1024 |
L05D |
M10-M24 |
4.09 |
| 注：筒夾需單獨訂購。 |
| Notice: Collets shall be ordered separately. |
| |
| 特點/ Feature |
|
| ■采用法蘭接觸設計，以求更優秀的剛性和同心度。 |
■Flange design, supply for better synchrony & rigidness. |
| ■支持絲錐快速更換。 |
■Quick assembling for taps. |
| ■中心內冷設計。 |
■With internal coolant system. |
| ■筒夾長度6種選擇（33-200mm）。 |
■6 sizes available for tapping collet (33-200mm）. |
|
|
