| BT刀柄 |
當前位置：首頁 > BT刀柄 |

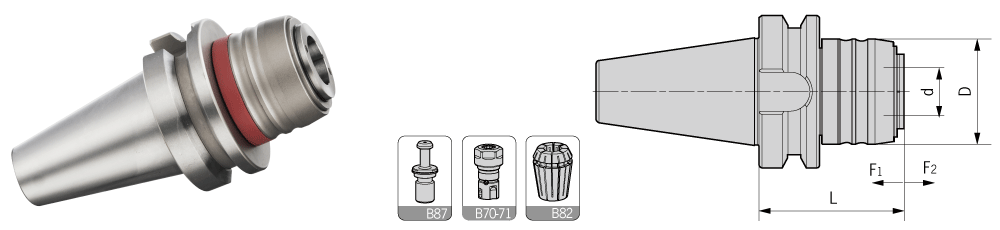

BT- VER Split Synch Tapping Chuck
BT-VER 分體式微補償攻牙刀柄 |
 |
|
|
型 號 |
|
|
|
|
|
攻牙能力 |
適用延長桿 |
重量 |
|
|
Specifcation |
D |
d |
L |
F1 |
F2 |
Tapping capacity |
Suit extender |
Weight |
|
|
|
BT30- |
VER16-57 |
43.5 |
20 |
57 |
0.2 |
1 |
M3-M12 |
VER16-M24/L55 |
0.65 |
|
|
|
WER20-72 |
52 |
25 |
72 |
0.2 |
1 |
M5-M16 |
VER20-M26/L75 |
0.75 |
|
|
BT40- |
VER16-61 |
43.5 |
20 |
61 |
0.2 |
1 |
M3-M12 |
VER16-M24/L55 |
1.05 |
|
|
|
VER20-72 |
52 |
25 |
72 |
0.2 |
1 |
M5-M16 |
VER20-M26/L75 |
1.20 |
|
|
|
VER25-82 |
60 |
32 |
82 |
0.2 |
1 |
M6-M20 |
VER25-M28/L86 |
1.35 |
|
|
|
VER32-98 |
72 |
40 |
98 |
0.2 |
1 |
M10-M24 |
VER32-M30/L90 |
1.68 |
|
|
|
VER40-107 |
87 |
50 |
107 |
0.2 |
1 |
M14-M33 |
VER40-M32/L95 |
1.95 |
|
|
BT50- |
DHP16-72 |
43.5 |
20 |
72 |
0.2 |
1 |
M3-M12 |
VER16-M24/L55 |
3.55 |
|
|
|
VER20-83 |
52 |
25 |
83 |
0.2 |
1 |
M5-M16 |
VER20-M26/L75 |
3.45 |
|
|
|
VER25-93 |
60 |
32 |
93 |
0.2 |
1 |
M6-M20 |
VER25-M28/L86 |
3.88 |
|
|
|
VER32-109 |
72 |
40 |
109 |
0.2 |
1 |
M10-M24 |
VER32-M30/L90 |
4.22 |
|
|
|
VER40-124 |
87 |
50 |
124 |
0.2 |
1 |
M14-M33 |
VER40-M32/L95 |
4.65 |
| 注：延長桿、筒夾和扳手需單獨訂購。 |
| Notice: Extender,collets and wrenchs shall be ordered separately. |
| |
| 特點/ Feature |
|
| ■顯著提高絲錐使用壽命80%以上。 |
■Tap tool life increased by 80% and above; |
| ■有效提高加工生產效率2-4倍。 |
■Work efficiency increased 2 to 4 times; |
| ■明顯提高表面加工質量與精度。 |
■Better surface quality; |
| ■選用ER攻絲專用筒夾夾持。 |
■With ER tapping collet; |
| ■無需依賴設備精度。 |
■Best choice for squeeze taps. |
| ■擠壓絲錐首選。 |
|
|
| |
|
