HSK-A-FMB Face Mill Holder
HSK-A-FMB 平面銑刀柄 |
 |
| 型號(hào) |
圖示 |
|
|
|
|
|
|
|
|
刀盤(pán)鎖緊螺釘 |
墊圈 |
重量 |
|
Specifcation |

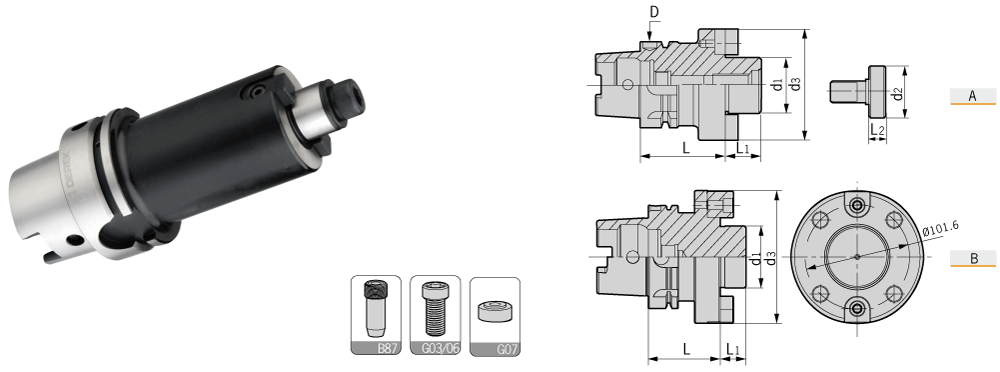

Figure |
D |
d1 |
d2 |
d3 |
L1 |
L2 |
L3 |
L |
Locking screw for cutter |
Washer |
Weight |
|
HSK50A-
HSK63A-
HSK100A- |
FMB22-60 |
A |
50 |
22 |
26 |
48 |
60 |
18 |
14 |
104 |
E100U300 |
- |
1.00 |
| FMB27-60 |
A |
50 |
27 |
31.5 |
60 |
60 |
20 |
16 |
106 |
E120U300 |
FM-1 |
1.10 |
| FMB22-50 |
A |
63 |
22 |
26 |
48 |
50 |
18 |
- |
101 |
E100U300 |
- |
1.30 |
| FMB22-100 |
A |
63 |
22 |
26 |
48 |
100 |
18 |
- |
151 |
E100U300 |
- |
1.80 |
| FMB27-60 |
A |
63 |
27 |
31.5 |
60 |
60 |
20 |
16 |
113 |
E120U300 |
FM-1 |
1.60 |
| FMB27-100 |
A |
63 |
27 |
31.5 |
60 |
100 |
20 |
16 |
153 |
E120U300 |
FM-1 |
2.30 |
| FMB32-60 |
A |
63 |
32 |
41 |
78 |
60 |
22 |
16 |
116 |
E160U350 |
FM-2 |
2.00 |
| FMB32-100 |
A |
63 |
32 |
41 |
78 |
100 |
22 |
16 |
156 |
E160U350 |
FM-2 |
2.80 |
| FMB40-60 |
A |
63 |
40 |
48 |
80 |
60 |
25 |
20.5 |
119 |
E200U350 |
FM-3 |
2.20 |
| FMB22-50 |
A |
100 |
22 |
26 |
48 |
50 |
18 |
14 |
119 |
E100U300 |
- |
2.90 |
| FMB22-100 |
A |
100 |
22 |
26 |
48 |
100 |
18 |
14 |
169 |
E100U300 |
- |
3.90 |
| FMB27-50 |
A |
100 |
27 |
31.5 |
60 |
50 |
20 |
16 |
121 |
E120U300 |
FM-1 |
2.90 |
| FMB27-100 |
A |
100 |
27 |
31.5 |
60 |
100 |
20 |
16 |
171 |
E120U300 |
FM-1 |
3.70 |
| FMB32-50 |
A |
100 |
32 |
41 |
78 |
50 |
22 |
16 |
124 |
E160Z500-40 |
- |
3.80 |
| FMB32-100 |
A |
100 |
32 |
41 |
78 |
100 |
22 |
16 |
174 |
E160Z500-40 |
- |
4.80 |
| FMB40-60 |
A |
100 |
40 |
48 |
80 |
60 |
25 |
20.5 |
137 |
E200Z500-50 |
- |
4.10 |
| FMB40-100 |
A |
100 |
40 |
48 |
80 |
100 |
25 |
20.5 |
177 |
E200Z500-50 |
- |
4.90 |
| FMB60F-70 |
B |
100 |
60 |
- |
129 |
70 |
25 |
101.6 |
160 |
E160U500 |
|
5.50 | |
|
