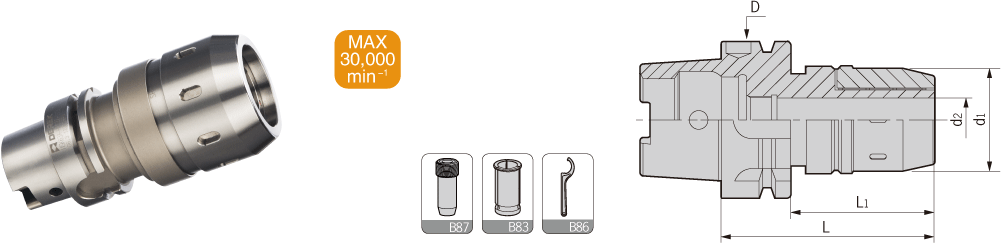

HSK-A-HPC High-Speed Power Chuck
HSK-A-HPC 高速強力刀柄 |
 |
| |
型號 |
夾持范圍 |
|
|
|
|
|
適用筒夾 |
重量 |
| |
Specifcation |
Clamping range |
D |
d1 |
d2 |
L1 |
L |
Suit collet |
Weight |
|
|
HSK63A- |
HPC16-80 |
6-16 |
63 |
50 |
16 |
54 |
80 |
SC16 |
1.28 |
| |
HPC16-110 |
6-16 |
63 |
50 |
16 |
84 |
110 |
SC16 |
1.64 |
| |
HPC20-110 |
6-20 |
63 |
51.5 |
20 |
84 |
110 |
SC20 |
1.70 |
| |
HPC25-110 |
6-25 |
63 |
61 |
25 |
84 |
110 |
SC25 |
1.99 |
| |
HPC25-145 |
6-25 |
63 |
61 |
25 |
119 |
145 |
SC25 |
2.76 |
| |
HPC32-110 |
6-32 |
63 |
70.5 |
32 |
84 |
110 |
SC32 |
2.20 |
|
HSK100A- |
HPC16-85 |
6-16 |
100 |
50 |
16 |
56 |
85 |
SC16 |
2.66 |
| |
HPC16-115 |
6-16 |
100 |
50 |
16 |
86 |
115 |
SC16 |
3.05 |
| |
HPC20-105 |
6-20 |
100 |
51.5 |
20 |
76 |
105 |
SC20 |
4.10 |
| |
HPC25-95 |
6-25 |
100 |
61 |
25 |
66 |
95 |
SC25 |
3.11 |
| |
HPC25-115 |
6-25 |
100 |
61 |
25 |
86 |
115 |
SC25 |
3.45 |
| |
HPC25-125 |
6-25 |
100 |
61 |
25 |
96 |
125 |
SC25 |
3.68 |
| |
HPC25-150 |
6-25 |
100 |
61 |
25 |
121 |
150 |
SC32 |
4.23 |
| |
HPC32-105 |
6-32 |
100 |
70.5 |
32 |
76 |
105 |
SC32 |
4.90 |
| |
HPC32-135 |
6-32 |
100 |
70.5 |
32 |
106 |
135 |
SC32 |
5.80 |
| |
HPC32-165 |
6-32 |
100 |
70.5 |
32 |
136 |
165 |
SC32 |
6.70 |
| |
HPC42-115 |
6-42 |
100 |
86 |
42 |
86 |
115 |
SC42 |
5.50 |
| 注：報價時含扳手，筒夾需單獨訂購。 |
| Notice:Wrench is included,while collet shall be ordered separately. |
| |
| 特點/ Feature |
|
■動平衡設定： G6.3 ； 15,000 rpm。
|
■Balanced: G6.3; 15,000 rpm; |
| ■3D處徑向跳動≤0.01mm。 |
■Runout (X3D): ≤ 0.01 mm. |
|
| | |
|
