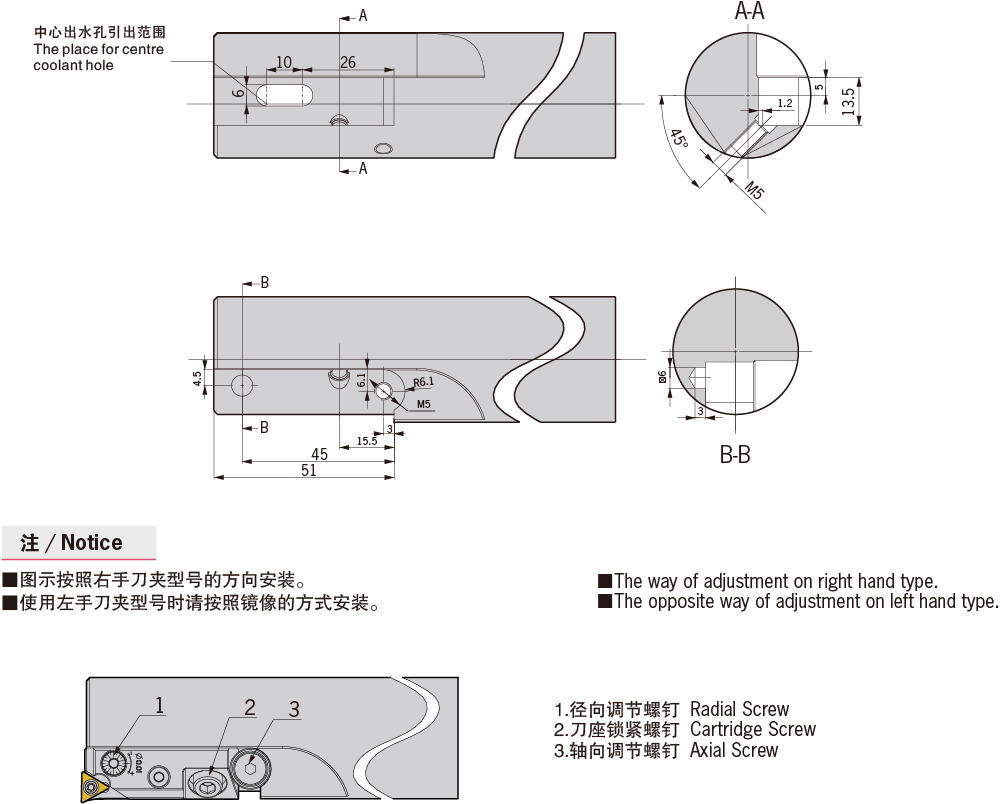

| 軸向調節方法 / Adjusting on axial direction |
|
徑向調節方法 / Adjusting on radial direction |
| 1.稍微松開刀座鎖緊螺釘2。 |
|
1.順時針?lè)较蛐D(zhuǎn)徑向調節螺釘1，刀具直徑逐漸變大。 |
| 2.順時針旋轉軸向調節螺釘3，刀座向前移動至需要的尺寸。 |
|
2.逆時針?lè)较蛐D(zhuǎn)徑向調節螺釘1，刀具直徑逐漸變小。 |
| 3.夾緊刀座鎖緊螺釘2。 |
|
3.徑向微調螺釘調節是每旋轉一個刻度，刀具直徑變化0.01mm |
|
|
|
| 1.Loosening the 2# lock screw lightly. |
|
1.Rotating the 1# radial adjusting screw in the clockwise direction, so that the diameter of tool will increase. |
| 2.Rotating the 3# axial screw in the anticlockwise direction,so that the cartridge can be moved forward to the required size. |
|
2.Rotating the 1# radial adjusting screw on the anticlockwise direction. so that the diameter of tool will reduce. |
| 3.Tightening the 2# lock screw firmly. |
|
3.The adjustment on diameter:0.01mm as per dial. |
