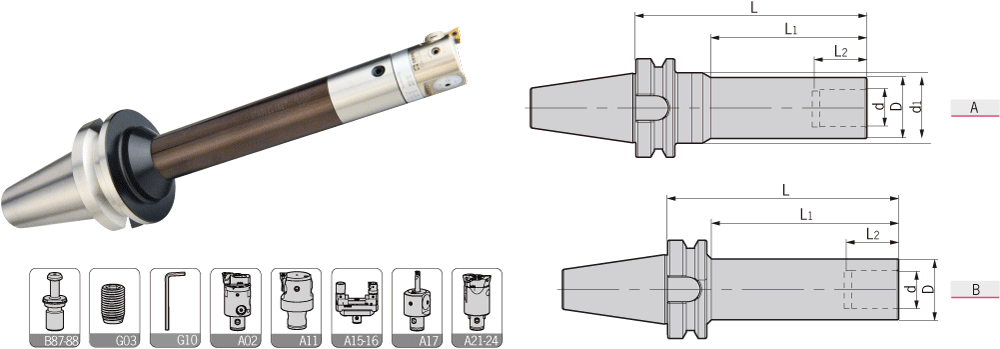

BT-SLBK Anti-Vibration Boring Holder
BT-SLBK 減振阻尼鏜頭刀柄 |
 |
| 型號 |
圖示 |
|
|
|
|
|
|
側(cè)固螺釘 |
L型扳手 |
重量 |
|
Specifcation |
Figure |
D |
d1 |
d |
L1 |
L2 |
L |
Side-lock screw |
Wrench |
Weight |
|
BT40- |
SLBK2-150 |
A |
24 |
39 |
14 |
110 |
150 |
55 |
M050R050-30P |
L025 |
1.45 |
| SLBK2-175 |
A |
24 |
39 |
14 |
135 |
175 |
70 |
M050R050-30P |
L025 |
1.51 |
| SLBK2-200 |
A |
24 |
39 |
14 |
160 |
200 |
80 |
M050R050-30P |
L025 |
1.56 |
| SLBK3-200 |
A |
31 |
50 |
18 |
160 |
200 |
80 |
M060R075-30P |
L03 |
2.21 |
| SLBK3-230 |
A |
31 |
50 |
18 |
190 |
230 |
70 |
M060R075-30P |
L03 |
2.34 |
| SLBK3-260 |
A |
31 |
50 |
18 |
220 |
260 |
70 |
M060R075-30P |
L03 |
2.47 |
| SLBK4-235 |
A |
39 |
50 |
22 |
200 |
235 |
60 |
M080R075-30P |
L04 |
3.12 |
| SLBK4-275 |
A |
39 |
50 |
22 |
240 |
275 |
70 |
M080R075-30P |
L04 |
3.42 |
| SLBK4-315 |
A |
39 |
50 |
22 |
280 |
315 |
100 |
M080R075-30P |
L04 |
3.71 |
| SLBK5-310 |
B |
50 |
- |
28 |
280 |
310 |
75 |
M100R100-30P |
L05 |
6.30 |
| SLBK6-295 |
B |
64 |
- |
36 |
270 |
295 |
100 |
M120R100-30P |
L06 |
8.71 |
|
BT50-
| SLBK2-160 |
A |
24 |
39 |
14 |
110 |
160 |
80 |
M050R050-30P |
L025 |
4.09 |
| SLBK2-185 |
A |
24 |
39 |
14 |
135 |
185 |
100 |
M050R050-30P |
L025 |
4.15 |
| SLBK2-210 |
A |
24 |
39 |
14 |
160 |
210 |
135 |
M050R050-30P |
L025 |
4.21 |
| SLBK3-220 |
A |
31 |
50 |
18 |
160 |
220 |
165 |
M060R075-30P |
L03 |
4.97 |
| SLBK3-250 |
A |
31 |
50 |
18 |
190 |
250 |
70 |
M060R075-30P |
L03 |
5.15 |
| SLBK3-280 |
A |
31 |
50 |
18 |
220 |
280 |
100 |
M060R075-30P |
L03 |
5.33 |
| SLBK4-260 |
A |
39 |
64 |
22 |
205 |
260 |
150 |
M080R075-30P |
L04 |
6.00 |
| SLBK4-260 |
A |
39 |
64 |
22 |
245 |
300 |
170 |
M080R075-30P |
L04 |
6.24 |
| SLBK4-300 |
A |
39 |
64 |
22 |
285 |
340 |
80 |
M080R075-30P |
L04 |
6.48 |
| SLBK5-340 |
A |
50 |
64 |
28 |
265 |
310 |
100 |
M100R100-30P |
L05 |
8.74 |
| SLBK5-355 |
A |
50 |
64 |
28 |
310 |
355 |
150 |
M100R100-30P |
L05 |
9.39 |
| SLBK5-400 |
A |
50 |
64 |
28 |
355 |
400 |
180 |
M100R100-30P |
L05 |
10.04 |
| SLBK6-375 |
B |
64 |
- |
36 |
330 |
375 |
90 |
M120R100-30P |
L06 |
14.28 |
| SLBK6-440 |
B |
64 |
- |
36 |
395 |
440 |
150 |
M120R100-30P |
L06 |
15.11 |
| SLBK6-505 |
B |
64 |
- |
36 |
460 |
505 |
180 |
M120R100-30P |
L06 |
15.96 |
| |
| 特點/ Feature |
| ■整支通孔，利于出水及抗振。■可共用并互容于大多數(shù)的“CK”系列。 |
| ■本產(chǎn)品應用于加工深度為柄徑D的6-8倍長。 |
■側(cè)固螺絲鎖固時，請使用防卡油，以免鏜孔時因扭力過大，導致螺絲卡死難以拆裝。
|
| ■The whole bar with through holes,be useful for coolant and anti-shanking. ■Be compatible for all＂CK＂series. |
| ■6-8 times machining depth to the bar diameter. |
| ■Please apply lubricating oil to the screw to avoid stuck. | |
|
