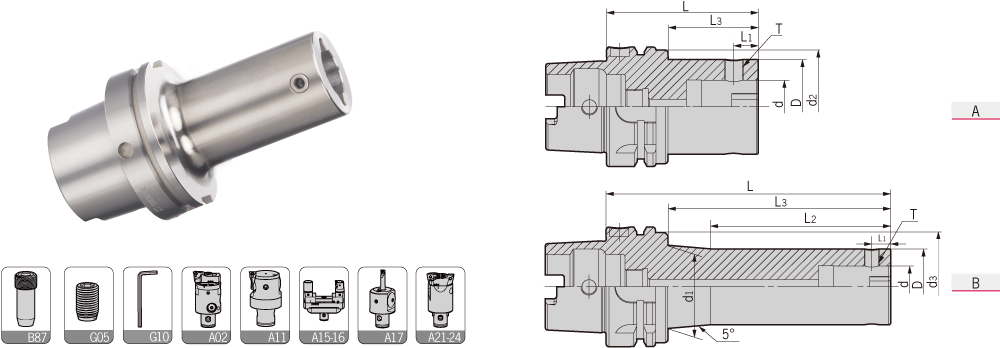

HSK-DCK Boring Adapter
HSK-DCK 鏜頭刀柄 |
|
型號 |
圖示 |
|
|
|
|
|
|
|
|
側固螺釘 |
L型扳手 |
重量 |
Specifcation |
Figure |
D |
d |
d1 |
d2 |
L1 |
L2 |
L3 |
L |
Side-lock screw |
Wrench |
Weight |
HSK100A- |
DCK1-80 |
A |
19 |
11 |
- |
65 |
5.05 |
- |
43 |
80 |
M050Z050-30P-D |
L025 |
2.27 |
DCK1-115L |
B |
19 |
11 |
24 |
65 |
5.05 |
50 |
78 |
115 |
M050Z050-30P-D |
L025 |
2.37 |
DCK1-115L |
B |
19 |
11 |
27.5 |
65 |
5.05 |
60 |
108 |
145 |
M050Z050-30P-D |
L025 |
2.46 |
DCK1-145L |
A |
24 |
14 |
- |
65 |
6.45 |
- |
43 |
80 |
M050Z060-30P-D |
L025 |
2.31 |
DCK2-105 |
A |
24 |
14 |
- |
65 |
6.45 |
- |
68 |
105 |
M050Z060-30P-D |
L025 |
2.40 |
DCK2-135L |
B |
24 |
14 |
30 |
65 |
6.45 |
65 |
98 |
135 |
M050Z060-30P-D |
L025 |
2.52 |
DCK2-165L |
B |
24 |
14 |
33.5 |
65 |
6.45 |
75 |
128 |
165 |
M050Z060-30P-D |
L025 |
2.67 |
DCK3-85 |
A |
31 |
18 |
- |
65 |
7.9 |
- |
46 |
85 |
M060Z090-30P-D |
L03 |
2.40 |
DCK3-110 |
A |
31 |
18 |
- |
65 |
7.9 |
- |
71 |
110 |
M060Z090-30P-D |
L03 |
2.57 |
DCK3-140L |
B |
31 |
18 |
35.5 |
- |
7.9 |
75 |
101 |
140 |
M060Z090-30P-D |
L03 |
2.67 |
DCK3-170L |
B |
31 |
18 |
41 |
- |
7.9 |
85 |
- |
170 |
M060Z090-30P-D |
L03 |
2.90 |
DCK4-100 |
A |
39 |
22 |
- |
- |
10 |
- |
- |
100 |
M080Z120-30P-D |
L04 |
2.53 |
DCK4-160L |
B |
39 |
22 |
47 |
- |
10 |
85 |
- |
160 |
M080Z120-30P-D |
L04 |
3.10 |
DCK4-205L |
B |
39 |
22 |
50.5 |
- |
10 |
110 |
- |
205 |
M080Z120-30P-D |
L04 |
3.62 |
DCK5-90 |
A |
50 |
28 |
- |
- |
13 |
- |
- |
90 |
M100Z160-30P-D |
L05 |
2.72 |
DCK5-165 |
A |
50 |
28 |
- |
- |
13 |
- |
- |
165 |
M100Z160-30P-D |
L05 |
3.82 |
DCK5-210L |
B |
50 |
28 |
61 |
- |
13 |
120 |
- |
210 |
M100Z160-30P-D |
L05 |
4.60 |
DCK5-270L |
B |
50 |
28 |
69.5 |
- |
13 |
130 |
- |
270 |
M100Z160-30P-D |
L05 |
6.09 |
DCK6-85 |
A |
64 |
36 |
- |
- |
16 |
- |
- |
85 |
M120Z200-30P-D |
L06 |
3.05 |
DCK6-155 |
A |
64 |
36 |
- |
- |
16 |
- |
- |
155 |
M120Z200-30P-D |
L06 |
4.75 |
DCK6-215 |
A |
64 |
36 |
- |
- |
16 |
- |
- |
215 |
M120Z200-30P-D |
L06 |
6.10 |
DCK6-250 |
A |
64 |
36 |
- |
- |
16 |
- |
- |
250 |
M120Z200-30P-D |
L06 |
7.04 |
DCK6-300L |
B |
64 |
36 |
80 |
- |
16 |
180 |
- |
300 |
M120Z200-30P-D |
L06 |
8.80 |
DCK7-125 |
A |
90 |
46 |
- |
- |
19.15 |
- |
- |
125 |
M200Z290-30P-D |
L10 |
5.73 |
DCK7-200 |
A |
90 |
46 |
- |
- |
19.15 |
- |
- |
200 |
M200Z290-30P-D |
L10 |
9.30 |
DCK7-275 |
A |
90 |
46 |
- |
- |
19.15 |
- |
- |
275 |
M200Z290-30P-D |
L10 |
12.90 |
|
特點/ Feature |
■整支通孔,利于出水及抗振。■可共用并互容于大多數的“CK”系列。
|
■側固螺絲與鍵槽成90度,確保切削機的退刀相位。
|
■側固螺絲鎖固時,請使用防卡油,以免鏜孔時因扭力過大,導致螺絲卡死難以拆裝。
|
■The whole bar with through holes,be useful for coolant and anti-shanking. ■Be compatible for all"CK"series. |
■Side lock screw is at right angles to key slot, to make sure that the replacing holders in CNC machine are always in phase. |
■When side lock screw fastened, please use lubrication oil to avoid dead fastening. | |
|
