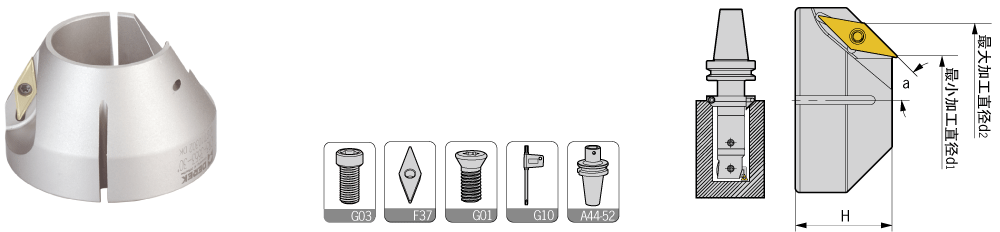

CR Chamfering Cutter
CR倒角刀 |
 |
| 安裝在DCK刀柄上用于鏜孔,倒角復合加工。Assembled with DCK boring tools to chamfer. |
| 型號 |
刃數 |
角度 |
|
|
|
組合刀柄 |
L型扳手 |
刀體鎖緊螺釘 |
刀片型號 |
刀片螺釘 |
旗形扳手 |
重量 |
|
Specifcation |
Teeth |
a |
d1 |
d2 |
H |
Adapter size |
Wrench |
Locking screw |
Insert |
Insert screw |
Wrench |
Weight |
CR
|
1-34-45 |
1 |
45 |
21 |
34 |
22 |
DCK1 |
L04 |
E050U160-D |
VC**1103 |
M040S100-1 |
Q08 |
0.06 |
| 2-39-45 |
1 |
45 |
26 |
39 |
25 |
DCK2 |
L04 |
E050U160-D |
VC**1103 |
M025W060 |
Q08 |
0.12 |
| 3-54-45 |
1 |
45 |
34 |
54 |
35 |
DCK3 |
L05 |
E060U200-D |
VC**1604 |
M040S100-1 |
Q15 |
0.51 |
| 4-62-45 |
1 |
45 |
42 |
62 |
38 |
DCK4 |
L05 |
E060U200-D |
VC**1604 |
M040S100-1 |
Q15 |
0.69 |
| 5-93-45 |
2 |
45 |
53 |
93 |
43 |
DCK5 |
L05 |
E060U200-D |
VC**1604 |
M040S100-1 |
Q15 |
1.33 |
| 6-107-45 |
2 |
45 |
67 |
107 |
46 |
DCK6 |
L06 |
E080U250-D |
VC**1604 |
M040S100-1 |
Q15 |
1.84 |
| 6-138-45 |
2 |
45 |
98 |
138 |
46 |
DCK6 |
L06 |
E080U250-D |
VC**1604 |
M040S100-1 |
Q15 |
3.86 |
| 6-160-45 |
2 |
45 |
120 |
160 |
46 |
DCK6 |
L06 |
E080U250-D |
VC**1604 |
M040S100-1 |
Q15 |
5.58 |
CR
|
1-41-30 |
2 |
30 |
23 |
41 |
30 |
DCK1 |
L04 |
E050U160-D |
VC**1103 |
M025W060 |
Q08 |
0.10 |
| 2-46-30 |
2 |
30 |
28 |
46 |
35 |
DCK2 |
L04 |
E050U160-D |
VC**1103 |
M025W060 |
Q08 |
0.21 |
| 3-53-30 |
2 |
30 |
35 |
53 |
35 |
DCK3 |
L05 |
E060U200-D |
VC**1103 |
M025W060 |
Q08 |
0.34 |
| 4-61-30 |
2 |
30 |
43 |
61 |
35 |
DCK4 |
L05 |
E060U200-D |
VC**1103 |
M025W060 |
Q08 |
0.41 |
| 5-84-30 |
2 |
30 |
56 |
84 |
48 |
DCK5 |
L05 |
E080U250-D |
VC**1604 |
M040S100-1 |
Q15 |
1.33 |
| 6-98-30 |
2 |
30 |
70 |
98 |
48 |
DCK6 |
L06 |
E080U250-D |
VC**1604 |
M040S100-1 |
Q15 |
1.21 |
| 6-120-30 |
2 |
30 |
92 |
120 |
48 |
DCK6 |
L06 |
E080U250-D |
VC**1604 |
M040S100-1 |
Q15 |
3.01 |
| 6-142-30 |
2 |
30 |
114 |
142 |
48 |
DCK6 |
L06 |
E080U250-D |
VC**1604 |
M040S100-1 |
Q15 |
4.09 |
| 適用Suitable:德克、京瓷或三菱刀片DEREK、KYOCERA Or MITSUBISHI Insert |
|
|
