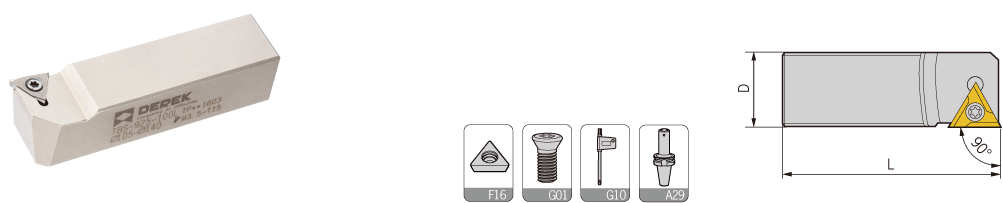

CBS Square Boring Bar
CBS 舍棄式鏜孔刀桿 |
 |
| C90度刀桿適用於BSB刀柄For BSB Boring Holder |
| 型號(hào) |
|
|
鏜孔范圍 |
刀片 |
刀片螺釘 |
旗形扳手 |
重量 |
|
Specifcation |
D |
L |
Boring range |
Insert |
Insert screw |
Wrench |
Weight |
|
CBS |
908-23-L/R |
8 |
23 |
25-38 |
CCMT0602 |
M025W060 |
Q08 |
0.05 |
| 908-30-L/R |
8 |
30 |
38-52 |
CCMT0602 |
M025W060 |
Q08 |
0.06 |
| 910-36-L/R |
10 |
36 |
38-50 |
CCMT0602 |
M025W060 |
Q08 |
0.07 |
| 910-45-L/R |
10 |
45 |
50-70 |
CCMT0602 |
M025W060 |
Q08 |
0.08 |
| 913-48-L/R |
13 |
48 |
50-70 |
CCMT09T3 |
M035D080-2 |
Q15 |
0.10 |
| 913-65-L/R |
13 |
65 |
70-90 |
CCMT09T3 |
M035D080-2 |
Q15 |
0.12 |
| 916-60-L/R |
16 |
60 |
62-90 |
CCMT09T3 |
M035D080-2 |
Q15 |
0.15 |
| 916-80-L/R |
16 |
80 |
90-115 |
CCMT09T3 |
M035D080-2 |
Q15 |
0.17 |
| 919-70-L/R |
19 |
70 |
72-105 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.20 |
| 919-85-L/R |
19 |
85 |
90-115 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.28 |
| 919-90-L/R |
19 |
90 |
105-135 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.25 |
| 919-105-L/R |
19 |
105 |
115-150 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.30 |
| 925-100-L/R |
25 |
100 |
105-140 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.50 |
| 925-135-L/R |
25 |
135 |
140-190 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.65 |
| 適用Suitable:德克、三菱或日立刀片DEREK、MITSUBISHI Or HITACHI Insert |
| C45度刀桿適用于BSA刀柄For BSA Boring Holder |
| 型號(hào) |
|
|
鏜孔范圍 |
刀片 |
刀片螺釘 |
旗形扳手 |
重量 |
|
Specifcation |
D |
L |
Boring range |
Insert |
Insert screw |
Wrench |
Weight |
|
CBS |
408-30 |
8 |
30 |
25-38 |
CCMT0602 |
M025W060 |
Q08 |
0.05 |
| 408-35 |
8 |
35 |
30-42 |
CCMT0602 |
M025W060 |
Q08 |
0.06 |
| 410-45 |
10 |
45 |
38-52 |
CCMT0602 |
M025W060 |
Q08 |
0.07 |
| 410-50 |
10 |
50 |
42-56 |
CCMT0602 |
M025W060 |
Q08 |
0.08 |
| 413-60 |
13 |
60 |
50-65 |
CCMT09T3 |
M035D080-2 |
Q15 |
0.10 |
| 416-75 |
16 |
75 |
62-90 |
CCMT09T3 |
M035D080-2 |
Q15 |
0.20 |
| 419-90 |
19 |
90 |
72-110 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.25 |
| 419-115 |
19 |
115 |
90-125 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.30 |
| 425-130 |
25 |
130 |
105-160 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.60 |
| 適用Suitable:德克、三菱或日立刀片DEREK、MITSUBISHI Or HITACHI Insert |
| |
| 特點(diǎn)/ Feature |
|
■CBS適合重切削加工。
|
■ For heavy cutting.
|
|
|
