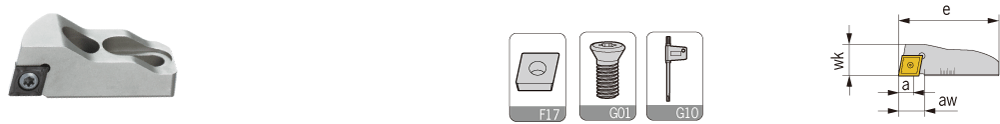

Cartridge for ABH Rough Back-boring Tool
ABH反鏜式粗鏜頭刀座 |
 |
| 反鏜刀座K |
|
|
|
|
鏜孔范圍 |
組合鏜頭 |
刀片 |
刀片螺釘 |
旗形扳手 |
重量 |
|
Cartridge K |
aw |
wk |
e |
a |
Boring range |
Boring head |
Insert |
Insert screw |
Wrench |
Weight |
| AKCC |
2936 |
|
4 |
11 |
25 |
0.5-3 |
29-36 |
ABH25 |
CCMT0602 |
M025W060 |
Q08 |
0.01 |
| |
3542 |
|
7 |
11 |
30 |
0.5-3 |
35-42 |
ABH25 |
CCMT0602 |
M025W060 |
Q08 |
0.02 |
| |
3645 |
|
5 |
11 |
32 |
0.5-3 |
36-45 |
ABH32 |
CCMT0602 |
M025W060 |
Q08 |
0.02 |
| |
4453 |
|
9 |
11 |
38 |
0.5-3 |
44-53 |
ABH32 |
CCMT0602 |
M025W060 |
Q08 |
0.02 |
| |
4556 |
|
5 |
15 |
40 |
0.5-4 |
45-56 |
ABH40 |
CCMT09T3 |
M040S100-1 |
Q15 |
0.04 |
| |
5566 |
|
12 |
15 |
46.5 |
0.5-4 |
55-66 |
ABH40 |
CCMT09T3 |
M040S100-1 |
Q15 |
0.05 |
| |
5674 |
|
11 |
17 |
49 |
0.5-4 |
56-74 |
ABH50 |
CCMT09T3 |
M040S110-1 |
Q15 |
0.07 |
| |
7492 |
|
17 |
17 |
62 |
0.5-4 |
74-92 |
ABH50 |
CCMT09T3 |
M040S110-1 |
Q15 |
0.09 |
| |
7090 |
|
12 |
21 |
60 |
0.5-5 |
70-90 |
ABH63 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.13 |
| |
90110 |
|
22 |
21 |
78 |
0.5-5 |
90-110 |
ABH63 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.18 |
| |
90130 |
|
24 |
21.5 |
82 |
0.5-5 |
90-130 |
ABH80 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.18 |
| |
130170 |
|
24 |
21.5 |
102.5 |
0.5-5 |
130-170 |
ABH80 |
CCMT1204 |
M050Y110-1 |
Q20 |
0.25 |
| 適用Suitable:德克、三菱或日立刀片DEREK、MITSUBISHI Or HITACHI Insert |
|
|
