ABH Rough Boring Tool
ABH 分體式粗鏜頭 |
 |
| 型號 |

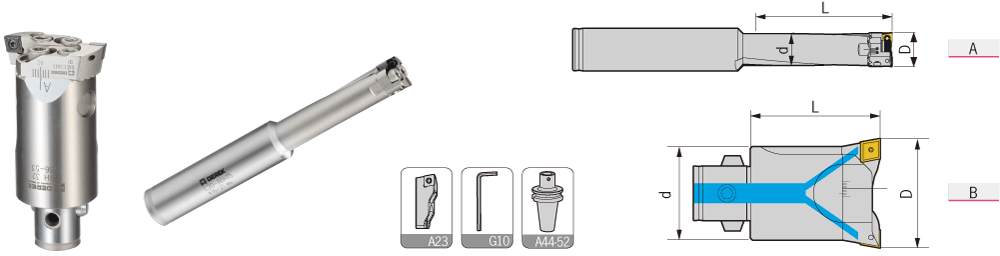

圖示 |
|
|
鏜孔范圍D |
組合刀柄 |
刀片座 |
重量 |
| Specification |
Figure |
d |
L |
Boring range |
Adapter size |
Insert holder |
Weight |
| C20-ABH15-M |
A |
15 |
64 |
16-19 |
C20 |
A0CC1619 |
0.30 |
| C20-ABH15-L |
A |
15 |
64 |
18-21 |
C20 |
A0CC1821 |
0.30 |
| DCK1-ABH19-M |
B |
19 |
32.5
| 20-26 |
10 |
AACC2026 |
ABCC2026 |
0.09 |
| DCK1-ABH19-L |
B |
19 |
32.5 |
25-31 |
10 |
AACC2531 |
ABCC2531 |
0.10 |
| DCK2-ABH25-M |
B |
25 |
50 |
29-36 |
10 |
AACC2936 |
ABCC2936 |
0.17 |
| DCK2-ABH25-L |
B |
25 |
50 |
35-42 |
10 |
AACC3542 |
ABCC3542 |
0.19 |
| DCK3-ABH32-M |
B |
32 |
63 |
36-45 |
10 |
AACC3645 |
ABCC3645 |
0.37 |
| DCK3-ABH32-L |
B |
32 |
63 |
44-53 |
10 |
AACC4453 |
ABCC4453 |
0.37 |
| DCK4-ABH40-M |
B |
40 |
63 |
45-56 |
10 |
AACC4556 |
ABCC4556 |
0.56 |
| DCK4-ABH40-L |
B |
40 |
63 |
55-66 |
10 |
AACC5566 |
ABCC5566 |
0.58 |
| DCK5-ABH50-M |
B |
50 |
80 |
56-74 |
10 |
AACC5674 |
ABCC5674 |
1.10 |
| DCK5-ABH50-L |
B |
50 |
80 |
74-92 |
10 |
AACC7492 |
ABCC7492 |
1.14 |
| DCK6-ABH63-M |
B |
64 |
82 |
70-90 |
10 |
AACC7090 |
ABCC7090 |
1.78 |
| DCK6-ABH63-L |
B |
64 |
82 |
90-110 |
10 |
AACC90110 |
ABCC90110 |
1.90 |
| DCK6-ABH80-M |
B |
80 |
82 |
90-130 |
10 |
AACC90130 |
ABCC90130 |
2.30 |
| DCK6-ABH80-L |
B |
80 |
82 |
130-170 |
10 |
AACC130170 |
ABCC130170 |
2.44 |
|
注：使用錯齒式加工詳見A77頁“加工方法”
Notice: For stepped cutting, please refer to Page A77。 |
|
|
