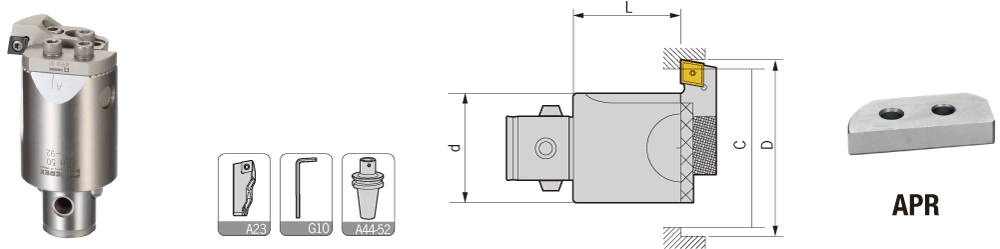

ABH Rough Back-boring Tool
ABH 反鏜式粗鏜頭 |
 |
| 型號 |
|
|
鏜孔范圍C-D |
組合刀柄 |
刀片座 |
壓板 |
重量 |
|
Specifcation |
d |
L |
Boring range |
Adapter size |
Insert holder |
Clamp |
Weight |
|
|
DCK2-ABH25-MF |
25 |
41 |
29-36 |
DCK2 |
AKCC2936 |
APR25 |
0.17 |
| DCK2-ABH25-LF |
25 |
41 |
35-42 |
DCK2 |
AKCC3542 |
APR25 |
0.18 |
| DCK3-ABH32-MF |
32 |
49 |
36-45 |
DCK3 |
AKCC3645 |
APR32 |
0.36 |
| DCK3-ABH32-LF |
32 |
49 |
44-53 |
DCK3 |
AKCC4453 |
APR32 |
0.36 |
| DCK4-ABH40-MF |
40 |
49 |
45-56 |
DCK4 |
AKCC4556 |
APR40 |
0.54 |
| DCK4-ABH40-LF |
40 |
49 |
55-66 |
DCK4 |
AKCC5566 |
APR40 |
0.55 |
| DCK5-ABH50-MF |
50 |
61 |
56-74 |
DCK5 |
AKCC5674 |
APR50 |
1.07 |
| DCK5-ABH50-LF |
50 |
61 |
74-92 |
DCK5 |
AKCC7492 |
APR50 |
1.09 |
| DCK6-ABH63-MF |
64 |
61 |
70-90 |
DCK6 |
AKCC7090 |
APR63 |
1.74 |
| DCK6-ABH63-LF |
64 |
61 |
90-110 |
DCK6 |
AKCC90110 |
APR63 |
1.79 |
| DCK6-ABH80-MF |
80 |
61 |
90-130 |
DCK6 |
AKCC90130 |
APR80 |
2.23 |
| DCK6-ABH80-LF |
80 |
61 |
130-170 |
DCK6 |
AKCC130170 |
APR80 |
2.30 |
| 注/Notice：選配反鏜頭需滿足：C＞(D+d)/2 | |
|
